Why is CT ratio 1 or 5?
What is a CT Ratio and Why is it 1 or 5?
Current transformer (CT) ratios typically have standard secondary current ratings of 1 ampere or 5 amperes. These values are chosen as industry standards for several practical reasons:
1. Standardization: - Having standard secondary current ratings (1A or 5A) allows for easier interchangeability and compatibility of measuring and protective devices across different systems. CT ratings and current ratings are standardized to ensure compatibility and safety across different systems.
2. Equipment Design: - Most metering and protection equipment is designed to work with these standard secondary currents, making it easier to select and install compatible devices. CTs are often installed in energy metering applications, where they are used to measure energy flow and consumption.
3. Wiring Considerations: - 1A and 5A are low enough currents to allow for reasonably thin wiring in the secondary circuit, reducing cost and simplifying installation. It is important to properly connect the secondary leads and secondary terminals to ensure safe operation and accurate measurement.
4. Power Consumption: - These current levels provide a good balance between signal strength and power consumption in the secondary circuit.
5. Accuracy: - 1A and 5A provide sufficient current for accurate measurements while being low enough to minimize heating and losses in the secondary circuit.
6. Historical Development: - These standards evolved over time as electrical systems developed, and have remained due to their practicality and widespread adoption.
7. Safety: - These current levels are generally considered safe for human interaction, although proper precautions are still necessary.
8. 1A vs 5A Choice: - 1A CTs are often preferred for long secondary wiring runs to reduce voltage drop and power consumption. - 5A CTs are commonly used for shorter runs and when higher secondary current is beneficial for the connected devices.
9. Burden Considerations: - The choice between 1A and 5A can affect the allowable burden on the CT, with 5A CTs generally allowing for higher burden. It is necessary to connect a proper load to the secondary terminals to avoid the risk of high voltage and short circuit conditions.
10. Retrofit and Upgrades: - Using these standard ratios makes it easier to retrofit or upgrade existing systems without changing all components.

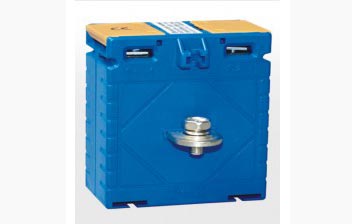

11. CT Types and Installation: different types of CTs, such as bar types, bar type current transformers, and split core CTs. These are selected based on installation requirements and the type of current carrying device, with split core CTs offering easy installation without disconnecting the primary conductor.
12. High Voltage Risk and Maintenance: If the secondary circuit is open, there is a risk of high voltage being produced at the secondary terminals, which can be dangerous. During maintenance, it is important to short circuit the secondary terminals to prevent high voltage buildup and ensure safety.
While 1A and 5A are the most common secondary ratings, it’s worth noting that other ratings do exist for specialized applications. However, the vast majority of CTs in use conform to these standard secondary current ratings for the reasons mentioned above.
The CT ratio is typically expressed in the form of a turns ratio (e.g., 100:5), and this is equivalent to the voltage ratio in a voltage transformer. The CT ratio can be adjusted by passing the primary conductor through the CT window multiple times (ct multiple times) or with one pass, which changes the proportional amount of current measured by the CT. CTs are used to measure energy flow and consumption in supply lines, and the meter must be configured to match the CT ratio for accurate energy measurement. It is important to log any configuration changes when adjusting CT ratios in energy meters.
CTs operate with alternating current, and normal operation requires the secondary circuit to be properly loaded to avoid a high degree of core saturation. In technical documentation, CTs are often referred to as current transformer CTs, and they are widely used in metering applications. The primary function of a CT is to produce a proportional amount of secondary current for measurement and protection purposes.
Prev News: What is the difference between a current transformer and a voltage transformer? Types of current transformers Next News: How are current transformers connected?
Introduction to Current Transformers
Current transformers (CTs) are vital devices in electrical distribution systems, designed for both measuring and protection applications. Their main function is to step down high primary currents to much lower, manageable secondary currents, making it possible to safely and accurately monitor the current flowing through AC transmission lines. The CT achieves this by using the magnetic field generated by the primary current conductor as it passes through the iron core of the transformer. This magnetic field induces a proportional secondary current output in the secondary winding, which is directly related to the primary current. By converting large currents into smaller, standardized values, current transformers enable precise metering and reliable operation of protection devices, ensuring the safety and efficiency of electrical systems.
Primary and Secondary Components
A basic current transformer is constructed with a laminated steel iron core, which serves as the foundation for the device. Wrapped around this core is the secondary winding, made up of multiple turns of insulated wire. The primary winding can be a single turn—often just the primary conductor itself passing through the CT window—or it may consist of several turns, depending on the specific design. The primary conductor carries the actual current from the primary circuit, and as it passes through the CT window, it generates a magnetic field within the iron core. This magnetic field induces a current in the secondary winding, which is then directed to measuring instruments or protective relays. The secondary circuit operates at a much lower current than the primary circuit, making it safer and more practical for monitoring and control purposes. This design allows the CT to accurately reflect the current flowing in the primary conductor while providing electrical isolation and protection for connected devices.
Understanding CT Ratios
The CT ratio is a fundamental characteristic of current transformers, defining the relationship between the primary and secondary currents. Expressed as a ratio of primary turns to secondary turns, the CT ratio indicates how much the primary current is reduced in the secondary winding. For example, a CT with a ratio of 100:5 means that for every 100 amps flowing through the primary conductor, 5 amps will flow through the secondary winding. This proportional relationship ensures that the secondary current is a precise, scaled-down version of the primary current, allowing for accurate measurement and effective protection in electrical circuits. Understanding the CT ratio is essential for selecting the right CT for your application and ensuring that metering and protection devices receive the correct input.
Current Transformer Ratio Explanation
The current transformer ratio is determined by dividing the primary current by the secondary current, and it is typically expressed in a format such as 100:5 or 200:5. This ratio is established by the number of turns in the primary and secondary windings, as well as the magnetic characteristics of the iron core. For instance, increasing the number of secondary turns or adjusting the primary turns can change the CT ratio, allowing for customization to suit specific measurement or protection needs. However, it is important to note that modifying the CT ratio can impact the accuracy and burden performance of the current transformer. The ratio should be carefully calculated and, if necessary, adjusted according to the requirements of the application, while always considering the effect on the transformer’s overall accuracy and operational characteristics.
Factors Influencing CT Ratio
Several factors can affect the CT ratio, making it important to consider these elements during selection and installation. The size of the primary conductor, the configuration of the secondary winding, and the material of the iron core all play significant roles in determining the CT ratio. Environmental conditions such as temperature, humidity, and vibration can also influence the performance and stability of the ratio. Additionally, the method of connection—including the number of primary turns through the CT window and the number of secondary turns—can be used to adjust the ratio for specific applications. For example, passing the primary conductor through the CT window multiple times or altering the number of secondary turns can fine-tune the ratio to meet particular measurement or protection requirements. However, any adjustments should be made following proper procedures to maintain accuracy and ensure reliable operation of the current transformer in both metering and protection applications.
