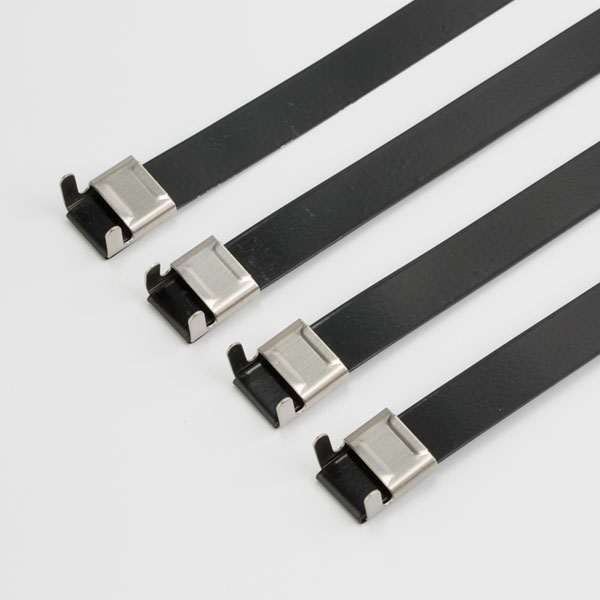

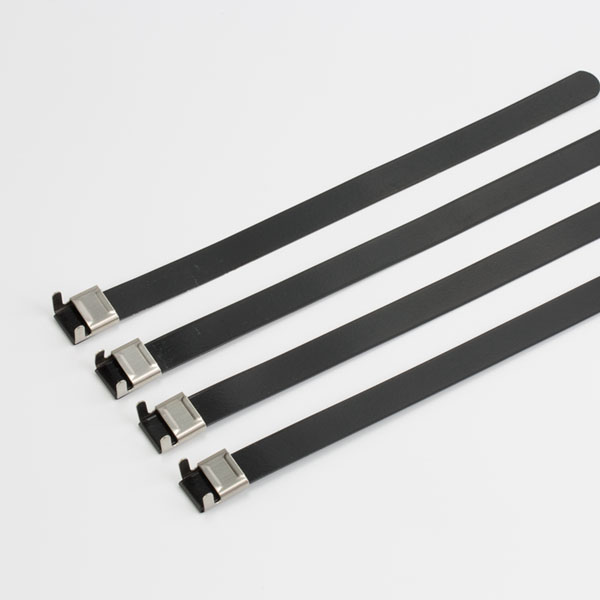

L Type PVC coated stainless steel cable tie
Specifications
| Item No. |
Length mm (inch) |
Width mm (inch) |
Max. Bundle Diameter mm(inch) |
Thickness mm (inch) |
Min. Tensile Strength kg (lbs) |
| 12×150 | 150 (5.90) | 12 (0.472) | 37 (1.46) | 0.4 (0.016) | 1200(2700) |
| 12×200 | 200 (7.87) |
12 (0.472) |
50 (1.97) |
0.4 (0.016) |
1200(2700) |
|
12×250 |
250 (9.84) |
12 (0.472) |
63 (2.48) |
0.4 (0.016) |
1200(2700) |
|
12×300 |
300 (11.8) |
12 (0.472) |
76 (2.99) |
0.4 (0.016) |
1200(2700) |
|
12×350 |
350 (13.78) |
12 (0.472) |
89 (3.50) |
0.4 (0.016) |
1200(2700) |
|
12×400 |
400 (15.75) |
12 (0.472) |
102 (4.02) |
0.4 (0.016) |
1200(2700) |
|
12×450 |
450 (17.72) |
12 (0.472) |
115 (4.53) |
0.4 (0.016) |
1200(2700) |
|
12×500 |
500 (19.69) |
12 (0.472) |
128 (5.04) |
0.4 (0.016) |
1200(2700) |
|
12×550 |
550 (21.65) |
12 (0.472) |
141 (5.55) |
0.4 (0.016) |
1200(2700) |
| 12×600 | 600 (23.62) |
12 (0.472) |
154 (6.06) |
0.4 (0.016) |
1200(2700) |
|
12×650 |
650 (25.59) |
12 (0.472) |
167 (6.57) |
0.4 (0.016) |
1200(2700) |
|
12×700 |
700 (27.56) |
12 (0.472) |
180 (7.09) |
0.4 (0.016) |
1200(2700) |
| 15×200 | 200 (7.87) | 15 (0.590) | 50 (1.97) |
0.4 (0.016) |
1500(3370) |
|
15×250 |
250 (9.84) |
15 (0.590) |
63 (2.48) |
0.4 (0.016) |
1500(3370) |
|
15×300 |
300 (11.80) |
15 (0.590) |
76 (2.99) |
0.4 (0.016) |
1500(3370) |
|
15×350 |
350 (13.78) |
15 (0.590) |
89 (3.50) |
0.4 (0.016) |
1500(3370) |
|
15×400 |
400 (15.75) |
15 (0.590) |
102 (4.02) |
0.4 (0.016) |
1500(3370) |
|
15×450 |
450 (17.72) |
15 (0.590) |
115 (4.53) |
0.4 (0.016) |
1500(3370) |
|
15×500 |
500 (19.69) |
15 (0.590) |
128 (5.04) |
0.4 (0.016) |
1500(3370) |
|
15×550 |
550 (21.65) |
15 (0.590) |
141 (5.55) |
0.4 (0.016) |
1500(3370) |
|
15×600 |
600 (23.62) |
15 (0.590) |
154 (6.06) |
0.4 (0.016) |
1500(3370) |
|
15×650 |
650 (25.59) |
15 (0.590) |
167 (6.57) |
0.4 (0.016) |
1500(3370) |
|
15×700 |
700 (27.56) |
15 (0.590) |
180 (7.09) |
0.4 (0.016) |
1500(3370) |
|
15×750 |
750 (29.53) | 15 (0.590) | 191 (7.52) |
0.4 (0.016) |
1500(3370) |
|
15×800 |
800 (31.50) | 15 (0.590) | 193 (7.59) |
0.4 (0.016) |
1500(3370) |
|
15×1000 |
1000 (39.37) | 15 (0.590) | 208 (8.18) |
0.4 (0.016) |
1500(3370) |
