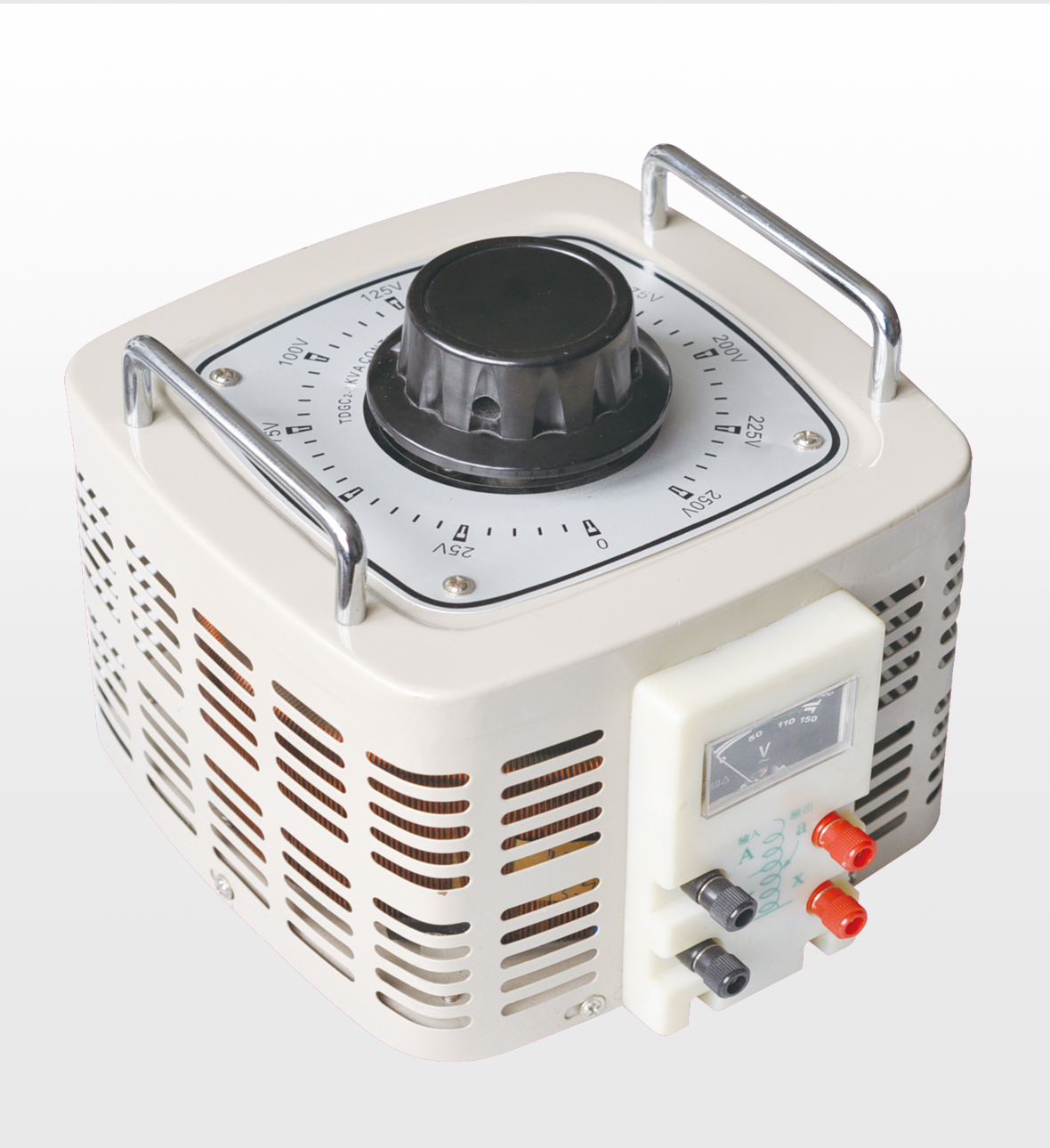

TDGC Power Supply
Specifications
|
Ref,
|
Model
|
Capacity(kVA)
|
Input Voltage（V）
|
Output Voltage(V)
|
Output Current(A)
|
Case Qty(Pcs)
|
Item Code
|
|
|
Single phase
|
||||||
|
TDGC2-0.2
|
0.2
|
220
|
0-250
|
0.8
|
12
|
04732002
|
|
|
TDGC2-0.5
|
0.5
|
220
|
0-250
|
2
|
6
|
04732005
|
|
|
TDGC2-1
|
1
|
220
|
0-250
|
4
|
4
|
04732010
|
|
|
TDGC2-2
|
2
|
220
|
0-250
|
8
|
4
|
04732020
|
|
|
TDGC2-3
|
3
|
220
|
0-250
|
12
|
2
|
04732030
|
|
|
TDGC2-5
|
5
|
220
|
0-250
|
20
|
1
|
04732050
|
|
|
TDGC2-7.5
|
7.5
|
220
|
0-250
|
30
|
1
|
04732075
|
|
|
TDGC2-10
|
10
|
220
|
0-250
|
40
|
1
|
04732100
|
|
|
TDGC2-15
|
15
|
220
|
0-250
|
60
|
1
|
04732150
|
|
|
Ref,
|
Model
|
Capacity(kVA)
|
Input Voltage（V）
|
Output Voltage(V)
|
Output Current(A)
|
Case Qty(Pcs)
|
Item Code
|
|
|
Three phase
|
||||||
|
TSGC2-1.5
|
1.5
|
380
|
0-430
|
2
|
2
|
09732015
|
|
|
TSGC2-3
|
3
|
380
|
0-430
|
4
|
1
|
09732030
|
|
|
TSGC2-6
|
6
|
380
|
0-430
|
8
|
1
|
09732060
|
|
|
TSGC2-9
|
9
|
380
|
0-430
|
12
|
1
|
09732090
|
|
|
TSGC2-10
|
10
|
380
|
0-430
|
12
|
1
|
09732100
|
|
|
TSGC2-15
|
15
|
380
|
0-430
|
20
|
1
|
09732150
|
|
|
TSGC2-20
|
20
|
380
|
0-430
|
27
|
1
|
09732200
|
|
|
TSGC2-30
|
30
|
380
|
0-430
|
40
|
1
|
09732300
|
|
|
TSGC2-40
|
40
|
380
|
0-430
|
53
|
1
|
09732400
|
|
|
TSGC2-60
|
60
|
380
|
0-430
|
80
|
1
|
04732600
|
|
|
Ref,
|
Model
|
Capacity(kVA)
|
Input Voltage（V）
|
Output Voltage(V)
|
Output Current(A)
|
Case Qty(Pcs)
|
Item Code
|
|
|
15W Single phase
|
||||||
|
S-15-5
|
5V. 0~3.0A
|
+10,-5%
|
±2%
|
65%
|
45
|
19015050
|
|
|
S-15-12
|
12V. 0 ~1.3A
|
±10%
|
±1%
|
68%
|
45
|
19015120
|
|
|
S-15-24
|
24V.0~0.7A
|
±10%
|
±1%
|
73%
|
45
|
19015240
|
|
|
Ref,
|
Model
|
Capacity(kVA)
|
Input Voltage（V）
|
Output Voltage(V)
|
Output Current(A)
|
Case Qty(Pcs)
|
Item Code
|
|
|
25W Single Output *1
|
||||||
|
S-25-5
|
5V. 0~5.0A
|
+10, -5%
|
±2%
|
72%
|
45
|
19025050
|
|
|
S-25-12
|
12V. 0 ~2.1A
|
±10%
|
±1%
|
76%
|
45
|
19025120
|
|
|
S-25-15
|
15V.0~1.7A
|
±10%
|
±1%
|
78%
|
45
|
19025150
|
|
|
S-25-24
|
24V.0~1.1A
|
±10%
|
±1%
|
80%
|
45
|
19025240
|
|
|
Ref,
|
Model
|
Capacity(kVA)
|
Input Voltage（V）
|
Output Voltage(V)
|
Output Current(A)
|
Case Qty(Pcs)
|
Item Code
|
|
|
35W Single Output *3
|
||||||
|
S-35-5
|
5V. 0~7.0A
|
+10, -5%
|
±2%
|
70%
|
30
|
19035050
|
|
|
S-35-12
|
12V. 0 ~3.0A
|
±10%
|
±1%
|
76%
|
30
|
19035120
|
|
|
S-35-15
|
15V.0~2.4A
|
±10%
|
±1%
|
78%
|
30
|
19035150
|
|
|
S-35-24
|
24V.0~1.5A
|
±10%
|
±1%
|
78%
|
30
|
19035240
|
|
AC input voltage range: 85-132VAC/170-264VAC selected by switch： 47-63Hz: 240-370VDC
*1 input current: 0.35A/115V. 0.18A/230V
*2 input current: 0.6A/115V.0.35A/230V
*3 input current: 0.8A/115V/0.45A/230V
|
Ref,
|
Model
|
Capacity(kVA)
|
Input Voltage（V）
|
Output Voltage(V)
|
Output Current(A)
|
Case Qty(Pcs)
|
Item Code
|
|
|
40W Single Output *4
|
||||||
|
S-40-5
|
5V. 0~8.0A
|
+10, -5%
|
±2%
|
72%
|
30
|
19040050
|
|
|
S-40-12
|
12V. 0 ~3.5A
|
±10%
|
±1%
|
76%
|
30
|
19040120
|
|
|
S-40-15
|
15V.0~2.8A
|
±10%
|
±1%
|
76%
|
30
|
19040150
|
|
|
S-40-24
|
24V.0~1.8A
|
±10%
|
±1%
|
78%
|
30
|
19040240
|
|
|
Ref,
|
Model
|
Capacity(kVA)
|
Input Voltage（V）
|
Output Voltage(V)
|
Output Current(A)
|
Case Qty(Pcs)
|
Item Code
|
|
|
50W Single Output *5
|
||||||
|
S-50-5
|
5V. 0~10A
|
+10, -5%
|
±2%
|
71%
|
30
|
19050050
|
|
|
S-50-12
|
12V. 0 ~4.2A
|
±10%
|
±1%
|
78%
|
30
|
19050120
|
|
|
S-50-15
|
15V.0~3.4A
|
±10%
|
±1%
|
78%
|
30
|
19050150
|
|
|
S-50-24
|
24V.0~2.1A
|
±10%
|
±1%
|
82%
|
30
|
19050240
|
|
|
Ref,
|
Model
|
Capacity(kVA)
|
Input Voltage（V）
|
Output Voltage(V)
|
Output Current(A)
|
Case Qty(Pcs)
|
Item Code
|
|
|
60W Single Output *6
|
||||||
|
S-60-5
|
5V. 0~12A
|
+10, -5%
|
±2%
|
73%
|
30
|
19060050
|
|
|
S-60-12
|
12V. 0 ~5.0A
|
±10%
|
±1%
|
76%
|
30
|
19060120
|
|
|
S-60-15
|
15V.0~4.0A
|
±10%
|
±1%
|
77%
|
30
|
19060150
|
|
|
S-60-24
|
24V.0~2.5A
|
±10%
|
±1%
|
79%
|
30
|
19060240
|
|
AC input voltage range: 85-132VAC/170-264VAC selected by switch： 47-63Hz: 240-370VDC
*4 input current: 1.2/115V. 0.6A/230V
*5 input current: 1.3A/115V.0.65A/230V
*6 input current: 1A/115V/0.6A/230V
|
Ref,
|
Model
|
Capacity(kVA)
|
Input Voltage（V）
|
Output Voltage(V)
|
Output Current(A)
|
Case Qty(Pcs)
|
Item Code
|
|
|
75W Single Output *7
|
||||||
|
S-75-5
|
5V. 0~15A
|
+10, -5%
|
±2%
|
71%
|
30
|
19075050
|
|
|
S-75-12
|
12V. 0 ~6.3A
|
±10%
|
±1%
|
78%
|
30
|
19075120
|
|
|
S-75-15
|
15V.0~5A
|
±10%
|
±1%
|
78%
|
30
|
19075150
|
|
|
S-75-24
|
24V.0~3.2A
|
±10%
|
±1%
|
82%
|
30
|
19075240
|
|
|
Ref,
|
Model
|
Capacity(kVA)
|
Input Voltage（V）
|
Output Voltage(V)
|
Output Current(A)
|
Case Qty(Pcs)
|
Item Code
|
|
|
100W Single Output *8
|
||||||
|
S-100-3
|
3V. 0~20A
|
2.85-3.3V
|
±2%
|
70%
|
30
|
19100030
|
|
|
S-100-5
|
5V. 0 ~20A
|
4.75-5.5V
|
±2%
|
78%
|
30
|
19100050
|
|
|
S-100-7.5
|
7.5V.0~13.6A
|
6.75-8.25V
|
±1%
|
80%
|
30
|
19100075
|
|
|
S-100-12
|
12V. 0~8.5A
|
10.8-13,2V
|
±1%
|
81%
|
30
|
19100120
|
|
|
S-100-15
|
15V.0~6.7A
|
13.5-16.4V
|
±1%
|
81%
|
30
|
19100150
|
|
|
S-100-24
|
24V.0~4.5A
|
21.6-26.4V
|
±1%
|
84%
|
30
|
19100240
|
|
|
S-100-27
|
27V,0~3.7A
|
26-32V
|
±1%
|
84%
|
30
|
19100270
|
|
|
S-100-48
|
48V.0~2.0A
|
43.2-52.8V
|
±1%
|
84%
|
30
|
19100480
|
|
| Ref. | Model | Output | Output Voltage Adjustable Range | Output Voltage Tolerance | Efficiency | Case Qty（Pcs） | Item Code |
| 120W Single Output *9 | |||||||
| S-120F-5 | 5V. 0 ~20A | ±10% | ±2% | 76% | 30 | 19120050 | |
| S-120F-7.5 | 7.5V. 0~16A | ±10% | ±1% | 78% | 30 | 19120075 | |
| S-120F-12 | 12V. 0~10A | ±10% | ±1% | 80% | 30 | 19120120 | |
| S-120F-15 | 15V. 0~8A | ±10% | ±1% | 81% | 30 | 19120150 | |
| S-120F-24 | 24V. 0~5A | ±10% | ±1% | 83% | 30 | 19120240 | |
| S-120F-48 | 48V. 0~2.5A | ±10% | ±1% | 84% | 30 | 19120480 | |
AC input voltage range： 85-132VAC/170-264VAC selected by switch：47-63Hz； 240-370VDC
*7 input current:1.6A/115V， 0.8A/230V
*8 input current：2.4A/115V，1.2A/230V
*9 input current： 2.5A/115V，1.25A/230V
| Ref. | Model | Output | Output Voltage Adjustable Range | Output Voltage Tolerance | Efficiency | Case Qty（Pcs） | Item Code |
| 145W Single Output *10 | |||||||
| S-145-5 | 5V. 0~25A | 4.75-5.5V | ±2% | 78% | 30 | 19145050 | |
| S-145-7.5 | 7.5V.0-18A | 6-8V | ±1% | 80.50% | 30 | 19145075 | |
| S-145-12 | 15V.0-12A | 10.8-13.2V | ±1% | 80.50% | 30 | 19145120 | |
| S-145-24 | 24V.0-6A | 21-28V | ±1% | 80.50% | 30 | 19145240 | |
| Ref. | Model | Output | Output Voltage Adjustable Range | Output Voltage Tolerance | Efficiency | Case Qty（Pcs） | Item Code |
| 150W Single Output *11 | |||||||
| S-150-5 | 5V. 0~30A | 4.5-5.5V | ±2% | 78% | 20 | 19150050 | |
| S-150-7.5 | 7.5V. 0~20.0A | 6-8.3V | ±1% | 80% | 20 | 19150075 | |
| S-150-9 | 9V. 0~16.70A | 8-10.4V | ±1% | 80% | 20 | 19150090 | |
| S-150-12 | 12V. 0~12.5A | 10.6-13.2V | ±1% | 82% | 20 | 19150120 | |
| S-150-13.5 | 13.5V. 0~11.2A | 12-15V | ±1% | 83% | 20 | 19150135 | |
| S-150-15 | 15V. 0~10.0A | 13.5-16.4V | ±1% | 84% | 20 | 19150150 | |
| S-150-24 | 24V. 0~6.5A | 21-28V | ±1% | 85% | 20 | 19150240 | |
| S-150-27 | 27V. 0~5.6A | 24-30V | ±1% | 86% | 20 | 19150270 | |
| S-150-48 | 48V. 0~3.20A | 43-53V | ±1% | 87% | 20 | 19150480 | |
| Ref. | Model | Output | Output Voltage Adjustable Range | Output Voltage Tolerance | Efficiency | Case Qty（Pcs） | Item Code |
| 200W Single Output *12 | |||||||
| S-200-5 | 5V. 0~40.0A | 4.75-5.5V | ±2% | 75% | 20 | 19200050 | |
| S-200-12 | 12V. 0~16.5A | 10.8-13.2V | ±1% | 80% | 20 | 19200120 | |
| S-200-15 | 15V. 0~13.3A | 13.5-165.V | ±1% | 80% | 20 | 19200150 | |
| S-200-24 | 24V. 0~8.5A | 21.6-26.4V | ±1% | 82% | 20 | 19200240 | |
| S-200-27 | 27V. 0~7.4A | 26-32V | ±1% | 82% | 20 | 19200270 | |
AC input voltage range： 85-132VAC/170-264VAC selected by switch：47-63Hz； 240-370VDC
*10 input current: 2.4A/115V， 1.2A/230V
*11 input current：3.2A/115V，1.6A/230V
*12 input current： 4.2A/115V，2.2A/230V
| Ref. | Model | Output | Output Voltage Adjustable Range | Output Voltage Tolerance | Efficiency | Case Qty（Pcs） | Item Code |
| 201W Single Output *13 | |||||||
| S-201-5 | 5V. 0~40A | 4.5V-5.6V | ±2% | 73% | 12 | 19201050 | |
| S-201-7.5 |
7.5V. 0~26.5A |
6-9V | ±2% | 76% | 12 | 19201075 | |
| S-201-12 | 12V. 0~16.5A | 10-13.2V | ±1% | 79% | 12 | 19201120 | |
| S-201-13.5 | 13.5V. 0~14.7A | 12-15V | ±1% | 79% | 12 | 19201135 | |
| S-201-15 | 15V. 0~13.0A | 13.5-18V | ±1% | 80% | 12 | 19201150 | |
| S-201-24 | 24V. 0~8.30A | 20-26.4V | ±1% | 81% | 12 | 19201200 | |
| S-201-27 | 27V. 0~7.4A | 26-32V | ±1% | 82% | 12 | 19201270 | |
| S-201-48 | 48V. 0~4.2A | 41-56V | ±1% | 83% | 12 | 19201400 | |
| Ref. | Model | Output | Output Voltage Adjustable Range | Output Voltage Tolerance | Efficiency | Case Qty（Pcs） | Item Code |
| 240W Single Output *14 | |||||||
| S-240-5 | 5V. 0-40A | 4.5-5.8V | ±2% | 78% | 12 | 19240050 | |
| S-240-7.5 | 7.5V. 0-30A | 6-9V | ±2% | 80% | 12 | 19240075 | |
| S-240-12 | 12V.0-18A | 10-14V | ±1% | 82% | 12 | 19240120 | |
| S-240-15 | 15V.0-15A | 12-18V | ±1% | 83% | 12 | 19240150 | |
| S-240-24 | 24V.0-10A | 20-28V | ±1% | 84% | 12 | 19240240 | |
| S-240-30 | 30V 0-8.0A | 27-33V | ±1% | 85% | 12 | 19240300 | |
| S-240-48 | 48V. 0-5A | 41-56V | ±1% | 87% | 12 | 19240400 | |
| Ref. | Model | Output | Output Voltage Adjustable Range | Output Voltage Tolerance | Efficiency | Case Qty（Pcs） | Item Code |
| 250W Single Output *15 | |||||||
| S-250-5 | 5V. 0~40A | 4.5-5.8V | ±2% | 73% | 12 | 19250050 | |
| S-250-7.5 | 7.5V. 0~30A | 6-9V | ±2% | 76% | 12 | 19250075 | |
| S-250-12 | 12V. 0~20A | 10-14V | ±1% | 79% | 12 | 19250120 | |
| S-250-15 | 15V.0~16.6A | 12-18V | ±1% | 80% | 12 | 19250150 | |
| S-250-24 | 24V. 0~10A | 20-28V | ±1% | 81% | 12 | 19250240 | |
| S-250-48 | 48V. 0~5.2A | 41-56V | ±1% | 83% | 12 | 19250480 | |
AC input voltage range： 85-132VAC/170-264VAC selected by switch：47-63Hz； 240-370VDC
*13 input current: 4.5A/115V， 2.5A/230V
*14 input current：4.5A/115V，3.6A/230V
*15 input current： 5.0A/115V，2.5A/230V
| Ref. | Model | Output | Output Voltage Adjustable Range | Output Voltage Tolerance | Efficiency | Case Qty（Pcs） | Item Code |
| 320W Single Output *16 | |||||||
| S-320-5 | 5V. 0~50A | 4.5-5.7V | ±2% | 77% | 12 | 19320050 | |
| S-320-7.5 | 7.5V, 0~36A | 6-9V | ±2% | 80% | 12 | 19320075 | |
| S-320-12 | 12V, 0~25A | 10-13.2V | ±1% | 82% | 12 | 19320120 | |
| S-320-13.5 | 13.5V, 0~22A | 12-15V | ±1% | 83% | 12 | 19320135 | |
| S-320-15 | 15V, 0~20A | 13.5-18V | ±1% | 84% | 12 | 19320150 | |
| S-320-24 | 24V, 0~12.5A | 20-26.4V | ±1% | 86% | 12 | 19320240 | |
| S-320-27 | 27V, 0~11A | 26-31V | ±1% | 86% | 12 | 19320270 | |
| S-320-48 | 48V, 0~6.5A | 41-56V | ±1% | 87% | 12 | 19320480 | |
| Ref. | Model | Output | Output Voltage Adjustable Range | Output Voltage Tolerance | Efficiency | Case Qty（Pcs） | Item Code |
| 350W Single Output *17 | |||||||
| S-350-5 | 5V. 0~50A | 4.5-5.6V | ±2% | 73% | 12 | 19350050 | |
| S-350-7.5 | 7.5V, 0~40A | 6-9V | ±2% | 76% | 12 | 19350075 | |
| S-350-12 | 12V， 0~29A | 10-13.2V | ±1% | 79% | 12 | 19350120 | |
| S-350-13.5 | 13.5V，0~25.8A | 12-15V | ±1% | 79% | 12 | 19350135 | |
| S-350-15 | 15V, 0~23.2A | 13.5-18V | ±1% | 80% | 12 | 19350150 | |
| S-350-24 | 24V, 0~14.6A | 20-26.4V | ±1% | 81% | 12 | 19350240 | |
| S-350-27 | 27V, 0~13A | 26-32V | ±1% | 82% | 12 | 19350270 | |
| S-350-48 | 48V, 0~7.3A | 42-56V | ±1% | 83% | 12 | 19350480 | |
| Ref. | Model | Output | Output Voltage Adjustable Range | Output Voltage Tolerance | Efficiency | Case Qty（Pcs） | Item Code |
| 500W Single Output *18 | |||||||
| S-500-12 | 12V, 0~40A | 10-13.2V | ±2% | 84% | 12 | 19500120 | |
| S-500-13.5 | 13.5V, 0~36A | 12-15V | ±1% | 84% | 12 | 19500135 | |
| S-500-15 | 15V, 0~32A | 13.5-18V | ±1% | 83% | 12 | 19500150 | |
| S-500-24 | 24V, 0~20A | 20-26.4V | ±1% | 85% | 12 | 19500240 | |
| S-500-27 | 27V, 0~18A | 24-30V | ±1% | 86% | 12 | 19500270 | |
| S-500-48 | 48V, 0~10A | 41-56V | ±1% | 87% | 12 | 19500480 | |
AC input voltage range： 85-132VAC/170-264VAC selected by switch：47-63Hz； 240-370VDC
*16 input current: 6A/115V， 3.5A/230V
*17 input current：6.5A/115V，4A/230V
*18 input current： 7A/115V,3.5
Inquiry for Our Products
ACRHT CO.,Ltd.Email: info@acrht.com
Can't find the specific information you’re looking for? Have a question ? Contact Us
