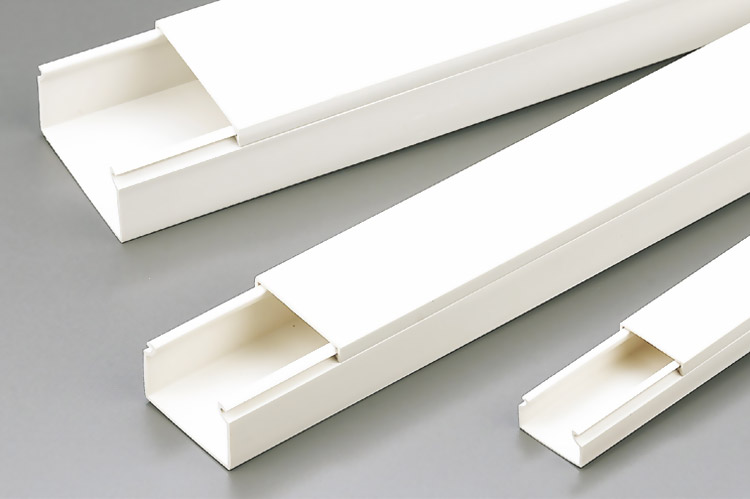

Solid Wiring Duct
◆ Material：made from PVC(WHITE),good insulation and heatresistingup to 85℃.
◆ Struction：made up of duct bottom and lid.
◆ Application：used in stage, electric, air conditioning or indoors.
◆ Feature：solid design, especially for anti-dust and mouse.
◆ Struction：made up of duct bottom and lid.
◆ Application：used in stage, electric, air conditioning or indoors.
◆ Feature：solid design, especially for anti-dust and mouse.
Specifications
|
编 号 Item NO. |

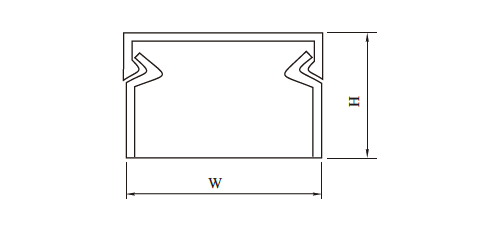

Height × Width |
Contained Wire(1.5² ) |
| PZC-0812 | 8mm×12mm | 2-4PCS |
| PZC-1015 | 10mm×15mm | 3-5PCS |
| PZC-1020 | 10mm×20mm | 3-6PCS |
| PZC-1025 | 10mm×25mm | 5-10PCS |
| PZC-1220 | 12mm×20mm | 3-8PCS |
| PZC-1525 | 15mm×25mm | 5-10PCS |
| PZC-1616 | 16mm×16mm | 5-10PCS |
| PZC-1625 | 16mm×25mm | 5-12PCS |
| PZC-1638 | 16mm×38mm | 12-30PCS |
| PZC-2030 | 20mm×30mm | 10-20PCS |
| PZC-2035 | 20mm×35mm | 15-25PCS |
| PZC-2050 | 20mm×50mm | 20-40PCS |
| PZC-2525 | 25mm×25mm | 10-25PCS |
| PZC-2540 | 25mm×40mm | 20-40PCS |
| PZC-3050 | 30mm×50mm | 30-50PCS |
| PZC-3060 | 30mm×60mm | 55-65PCS |
| PZC-5050 | 50mm×50mm | 80-90PCS |
| PZC-5080 | 50mm×80mm | 180-200PCS |
| PZC-50100 | 50mm×100mm | 220-250PCS |
| PZC-6060 | 60mm×60mm | 120-135PCS |
| PZC-60100 | 60mm×100mm | 240-290PCS |
| PZC-80100 | 80mm×100mm | 260-350PCS |
| PZC-100100 | 100mm×100mm | 300-400PCS |
