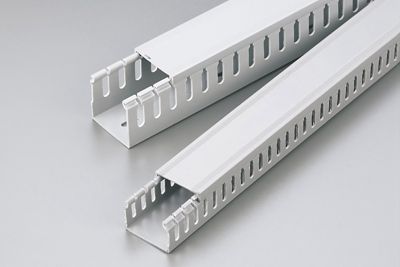

Slotted Wiring Duct
◆ Material：made from PVC(grey),heat-resistingup to 85℃ and good insulation.
◆ Struction：made up of duct bottom and lid, with two out-holes designd at the bottom.
◆ Struction：made up of duct bottom and lid, with two out-holes designd at the bottom.

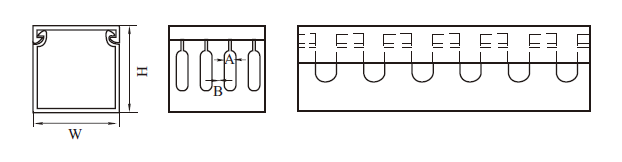

Specifications
|
编 号 Item NO. |
Height×Wodth |
厚度 |
孔宽(A) (mm) |
孔距(B) |
电 线 容 量 Contained Wire(1.5² ) |
| PXC-2015 | 20mm×15mm | 1.5mm | 4 | 6 | 5-10PCS |
| PXC-2020 | 20mm×20mm | 1.5mm | 6 | 8 | 10-15PCS |
| PXC-2025 | 20mm×25mm | 1.5mm | 6 | 8 | 10-20PCS |
| PXC-2525 | 25mm×25mm | 1.5mm | 4 | 6 | 10-25PCS |
| PXC-2540 | 25mm×40mm | 1.5mm | 8 | 10 | 20-40PCS |
| PXC-2545 | 25mm×45mm | 1.5mm | 8 | 10 | 25-40PCS |
| PXC-2560 | 25mm×60mm | 1.5mm | 8 | 10 | 45-60PCS |
| PXC-2580 | 25mm×80mm | 1.5mm | 8 | 10 | 50-70PCS |
| PXC-3015 | 30mm×15mm | 1.5mm | 0 | 0 | 5-15PCS |
| PXC-3020 | 30mm×20mm | 1.5mm | 4 | 6 | 10-20PCS |
| PXC-3025 | 30mm×25mm | 1.5mm | 4 | 6 | 15-25PCS |
| PXC-3030 | 30mm×30mm | 1.5mm | 4 | 6 | 20-30PCS |
| PXC-3035 | 30mm×35mm | 1.5mm | 4 | 6 | 30-45PCS |
| PXC-3040 | 30mm×40mm | 1.5mm | 4 | 6 | 35-50PCS |
| PXC-3050 | 30mm×50mm | 1.5mm | 4 | 6 | 45-60PCS |
| PXC-3525 | 35mm×25mm | 1.5mm | 4 | 6 | 25-35PCS |
| PXC-3535 | 35mm×35mm | 1.5mm | 4 | 6 | 40-55PCS |
| PXC-4025 | 40mm×25mm | 1.5mm | 6 | 8 | 20-40PCS |
| PXC-4030 | 40mm×30mm | 1.5mm | 6 | 8 | 35-50PCS |
| PXC-4035 | 40mm×35mm | 1.5mm | 6 | 8 | 40-50PCS |
| PXC-4040 | 40mm×40mm | 1.5mm | 6 | 8 | 45-55PCS |
| PXC-4060 | 40mm×60mm | 1.5mm | 6 | 8 | 60-80PCS |
| PXC-4080 | 40mm×80mm | 1.5mm | 6 | 8 | 100-120PCS |
| PXC-4525 | 45mm×25mm | 1.5mm | 6 | 9 | 25-40PCS |
| PXC-4535 | 45mm×35mm | 1.5mm | 6 | 9 | 40-55PCS |
| PXC-4545 | 45mm×45mm | 1.5mm | 6 | 9 | 60-70PCS |
| PXC-4565 | 45mm×65mm | 1.5mm | 6 | 9 | 90-100PCS |
| PXC-5015 | 50mm×15mm | 1.5mm | 0 | 0 | 25-35PCS |
| PXC-5025 | 50mm×25mm | 1.5mm | 6 | 9 | 25-45PCS |
| PXC-5030 | 50mm×30mm | 1.5mm | 6 | 9 | 30-55PCS |
| PXC-5035 | 50mm×35mm | 1.5mm | 6 | 9 | 50-60PCS |
| PXC-5040 | 50mm×40mm | 1.5mm | 6 | 9 | 60-70PCS |
| PXC-5045 | 50mm×45mm | 1.5mm | 6 | 9 | 70-85PCS |
| PXC-5050 | 50mm×50mm | 1.5mm | 6 | 9 | 90-100PCS |
| PXC-5055 | 50mm×55mm | 1.8mm | 6 | 9 | 100-110PCS |
| PXC-5060 | 50mm×60mm | 1.8mm | 6 | 9 | 110-125PCS |
| PXC-5080 | 50mm×80mm | 1.8mm | 8 | 10 | 180-200PCS |
| PXC-50100 | 50mm×100mm | 2.1mm | 8 | 10 | 220-250PCS |
| PXC-6025 | 60mm×25mm | 1.5mm | 6 | 9 | 45-60PCS |
| PXC-6040 | 60mm×40mm | 1.5mm | 6 | 9 | 90-100PCS |
| PXC-6060 | 60mm×60mm | 1.8mm | 6 | 9 | 140-160PCS |
| PXC-6080 | 60mm×80mm | 1.8mm | 8 | 10 | 250-300PCS |
| PXC-60100 | 60mm×100mm | 2.1mm | 8 | 10 | 230-270PCS |
| PXC-6525 | 65mm×25mm | 1.5mm | 8 | 10 | 100-110PCS |
| PXC-6545 | 65mm×45mm | 1.5mm | 8 | 10 | 180-200PCS |
| PXC-6565 | 65mm×65mm | 1.8mm | 8 | 10 | 200-220PCS |
| PXC-7550 | 75mm×50mm | 1.8mm | 8 | 10 | 140-160PCS |
| PXC-8025 | 85mm×25mm | 1.5mm | 6 | 8 | 60-70PCS |
| PXC-8035 | 80mm×35mm | 1.5mm | 6 | 8 | 160-180PCS |
| PXC-8040 | 80mm×40mm | 1.5mm | 6 | 8 | 100-120PCS |
| PXC-8045 | 80mm×45mm | 1.5mm | 6 | 8 | 180-200PCS |
| PXC-8050 | 80mm×50mm | 1.5mm | 6 | 8 | 200-220PCS |
| PXC-8055 | 80mm×55mm | 1.8mm | 6 | 10 | 240-290PCS |
| PXC-8060 | 80mm×60mm | 1.8mm | 6 | 10 | 250-300PCS |
| PXC-8080 | 80mm×80mm | 1.8mm | 8 | 10 | 280-350PCS |
| PXC-80100 | 80mm×100mm | 1.8mm | 8 | 10 | 300-400PCS |
| PXC-10033 | 100mm×33mm | 2.1mm | 10 | 12 | 110-120PCS |
| PXC-10040 | 100mm×40mm | 2.1mm | 10 | 12 | 130-180PCS |
| PXC-10050 | 100mm×50mm | 2.1mm | 10 | 12 | 210-250PCS |
| PXC-10060 | 100mm×60mm | 2.1mm | 10 | 12 | 230-270PCS |
| PXC-10080 | 100mm×80mm | 2.1mm | 10 | 12 | 300-380PCS |
| PXC-100100 | 100mm×100mm | 2.1mm | 10 | 12 | 300-400PCS |
| PXC-130100 | 130mm×100mm | 2.1mm | 10 | 12 | 350-500PCS |
