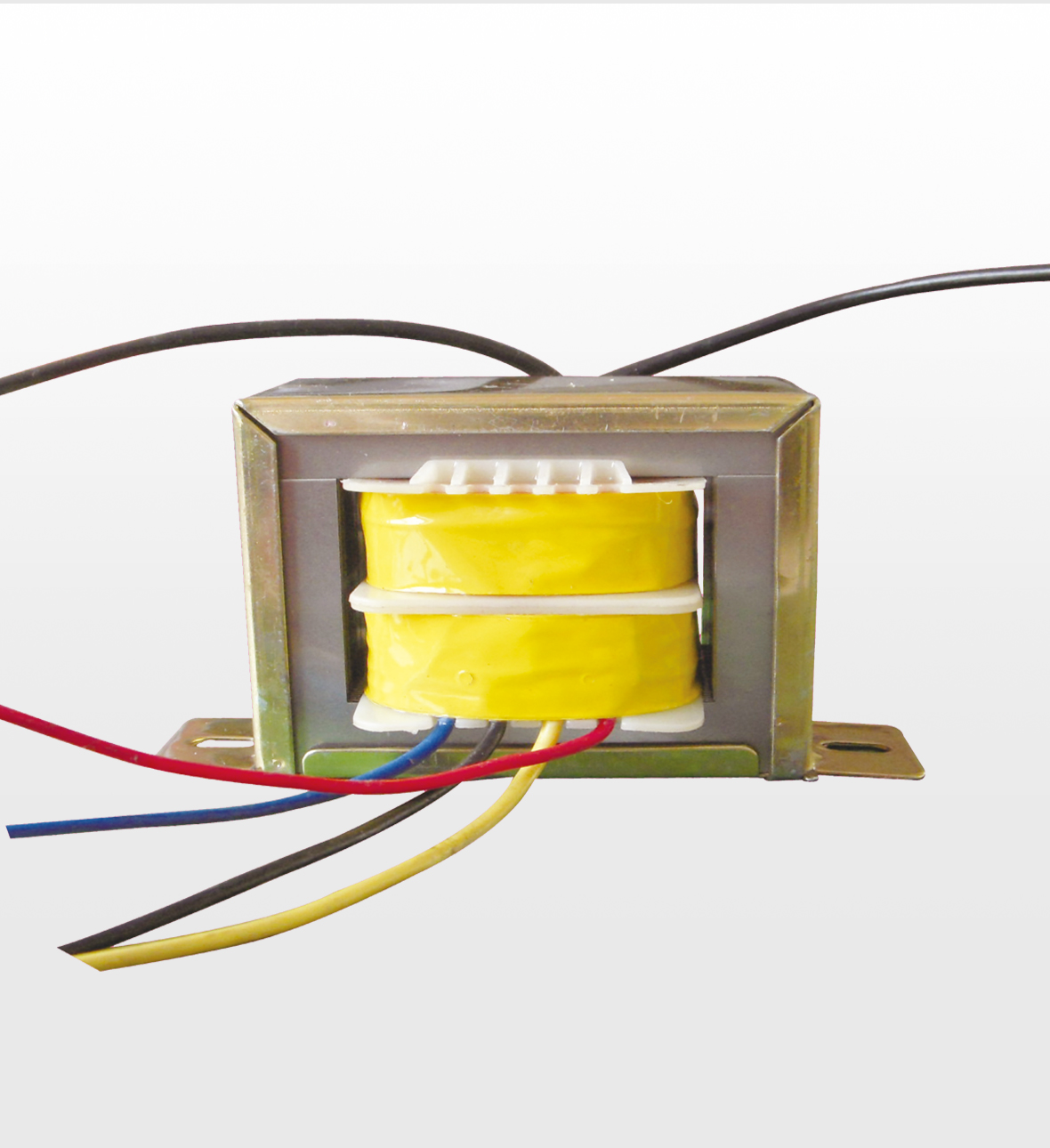

EI Series Power Supply
Specifications
|
Ref.
|
Model
|
Capacity(VA)
|
Voltage Regulation Factor(%)
|
Efficiency(%)
|
Case Qty(Pcs)
|
Item Code
|
| EI-1.6 | 1.6 | 19.8 | 63.4 | 36 | 59000016 | |
| EI-2 | 2.0 | 19.2 | 64.3 | 36 | 59000020 | |
| EI-3 | 3.0 | 18.6 | 66.5 | 36 | 59000030 | |
| EI-5 | 5.0 | 18.1 | 69.6 | 36 | 59000050 | |
| EI-6.3 | 6.3 | 18.0 | 74.1 | 36 | 59000063 | |
| EI-8 | 8.0 | 18.0 | 76.4 | 36 | 59000080 | |
| EI-10 | 10 | 17.8 | 77.6 | 36 | 59000100 | |
| EI-12 | 12 | 17.6 | 79.0 | 36 | 59000120 | |
| EI-16 | 16 | 17.3 | 81.1 | 36 | 59000160 | |
| EI-20 | 20 | 17.1 | 81.8 | 36 | 59000200 | |
| EI-25 | 25 | 17.1 | 81.1 | 36 | 59000250 | |
| EI-30 | 30 | 16.9 | 83.0 | 36 | 59000300 | |
| EI-40 | 40 | 14.2 | 84.6 | 27 | 59000400 | |
| EI-50 | 50 | 12.6 | 84.5 | 27 | 59000500 | |
| EI-63 | 63 | 10.8 | 85.2 | 27 | 59000630 | |
| EI-80 | 80 | 9.5 | 85.1 | 27 | 59000800 | |
| EI-100 | 100 | 8.3 | 86.4 | 27 | 59001000 | |
| EI-120 | 120 | 8.1 | 88.4 | 24 | 59001200 | |
| EI-160 | 160 | 7.8 | 89.3 | 24 | 59001600 | |
| EI-200 | 200 | 7.6 | 89.6 | 24 | 59002000 | |
| EI-250 | 250 | 6.8 | 90.7 | 18 | 59002500 | |
| EI-300 | 300 | 6.4 | 91.0 | 18 | 59003000 | |
| EI-500 | 500 | 5.8 | 93.1 | 18 | 59005000 |
Note: Please mention the voltage combination when ordering. Other else multiple voltage combination upon request.
|
Ref.
|
Model
|
Power （kVA） |
Dimension(mm)
|
Case Qty（Pcs）
|
Item Code
|
||
|
L
|
W
|
H
|
|||||
|
TND-0.5
|
0.5
|
190
|
170
|
145
|
6
|
04400005
|
|
|
TND-1
|
1
|
225
|
205
|
160
|
4
|
04400010
|
|
|
TND-1.5
|
1.5
|
225
|
205
|
160
|
2
|
04400015
|
|
|
TND-2
|
2
|
283
|
220
|
215
|
4
|
04400020
|
|
|
TND-3
|
3
|
305
|
240
|
235
|
2
|
04400030
|
|
|
TND-5
|
5
|
335
|
222
|
284
|
1
|
04400050
|
|
|
TND-7.5
|
7.5
|
410
|
240
|
373
|
1
|
04400075
|
|
|
TND-10
|
10
|
410
|
240
|
373
|
1
|
04400100
|
|
|
TND-5C*
|
4
|
310
|
273
|
450
|
1
|
04400350
|
|
|
TND-7.5C*
|
7.5
|
352
|
270
|
510
|
1
|
04400375
|
|
|
TND-10C*
|
10
|
352
|
275
|
512
|
1
|
04403100
|
|
|
TND-12
|
12
|
420
|
380
|
740
|
1
|
04400120
|
|
|
TND-15
|
15
|
420
|
380
|
740
|
1
|
04400150
|
|
|
TND-20
|
20
|
415
|
378
|
842
|
1
|
04400200
|
|
|
TND-30
|
30
|
415
|
378
|
842
|
1
|
04400300
|
|
* Compensation auto transformer
