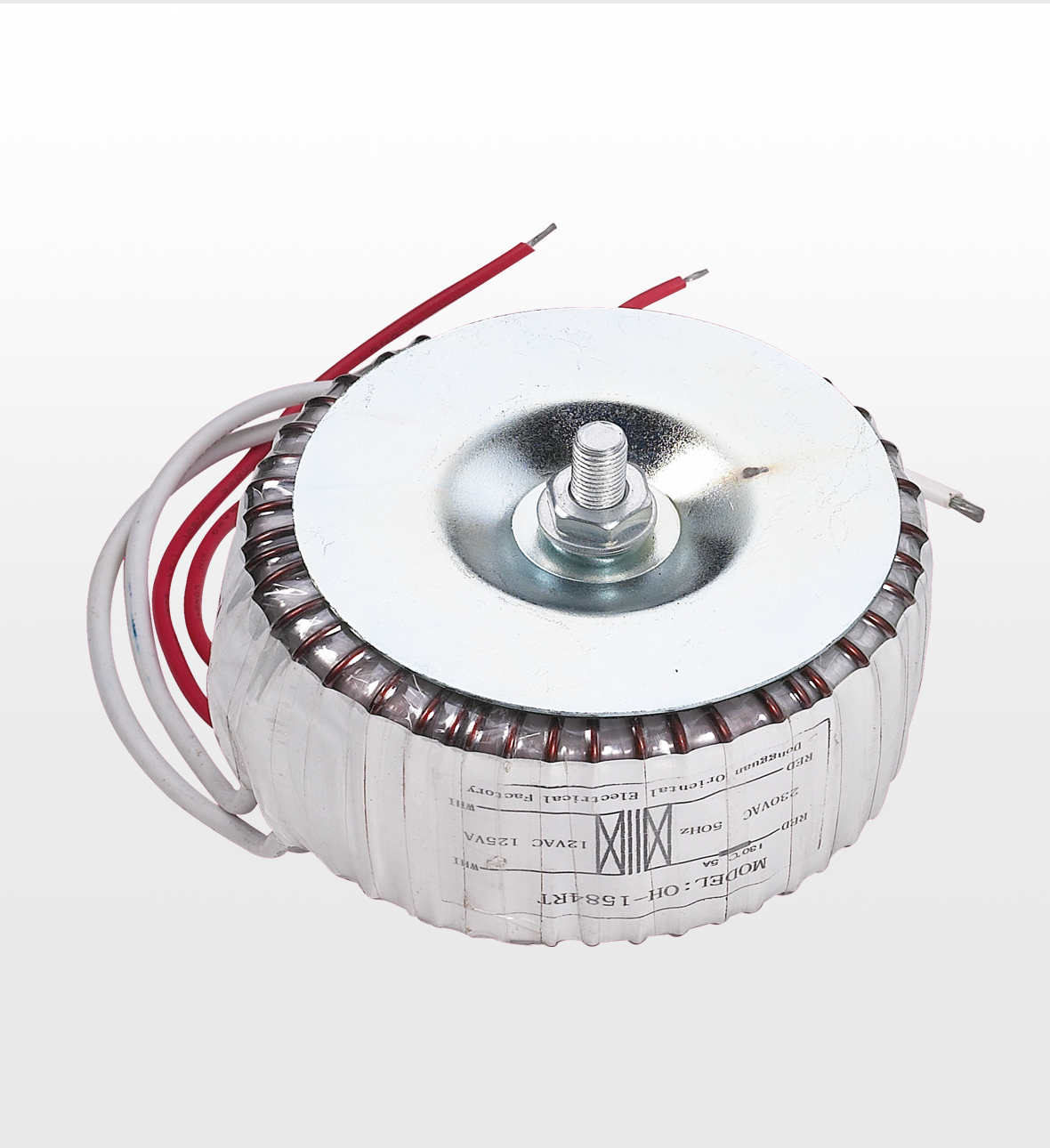

DH Series Power Supply

Specifications

Ref.

Model

Capacity(VA)

Static Current(mA)

Efficiency(%)

Voltage Combination

Case

Item Code

Primary(V)/Secondary(V)

Qty.(Pcs)

DH-50

230/24

220/24

230/36

220/36

440/230

230/12

130-240/15-240

115/24

48000050

DH-100

100

48000100

DH-150

150

48000150

DH-200

200

48000200

DH-250

250

48000250

DH-300

300

48000300

DH-350

350

48000350

DH-400

400

48000400

DH-450

450

48000450

DH-500

500

48000500

DH-550

550

48000550

DH-600

600

48000600

DH-700

700

48000700

DH-800

800

48000800

DH-1000

1000

48001000

Note: Please mention the voltage combination when ordering. Other else multiple voltage combination upon request.

Model	Dimension（mm）		Model	Dimension（mm）
Model	Height	Diameter	Model	Height	Diameter
DH-50	45	100	DH-450	70	140
DH-100	50	105	DH-500	80	140
DH-150	55	120	DH-550	70	145
DH-200	60	125	DH-600	85	150
DH-250	65	135	DH-700	85	155
DH-300	60	135	DH-800	85	160
DH-350	65	135	DH-1000	90	180
DH-400	72	140
