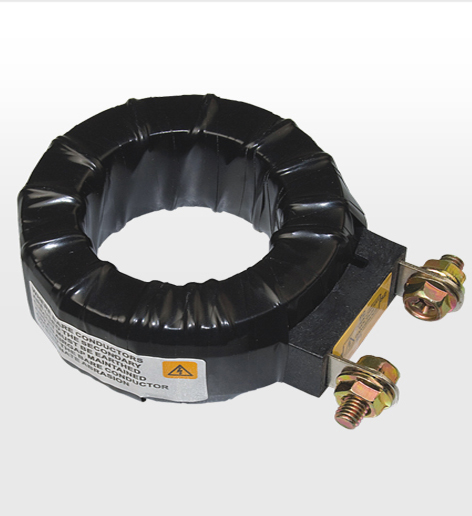

MR Series Current Transformer
Specifications
| Ref. | Model |
Ratio （A） |
Burden（VA） |
Case Qty.(Pcs) |
Item Code | |
| Class:0.5 | Class:1.0 | |||||
| MR-28 | 50/5 | - | 1.5 | 50 | 802500505 | |
| MR-28 | 60/5 | - | 1.5 | 50 | 802500605 | |
| MR-28 | 75/5 | - | 1.5 | 50 | 802500755 | |
| MR-28 | 100/5 | 1.5 | 2.5 | 50 | 802501005 | |
|
Note:Class/VA rating must be mentioned when ordering. There is no accessory for MR-28 |
||||||
| Ref. | Model |
Ratio （A） |
Burden（VA） |
Case Qty.(Pcs) |
Item Code | |
| Class:0.5 | Class:1.0 | |||||
| MR-42 | 100/5 | 1.5 | 2.5 | 50 | 804201005 | |
| MR-42 | 150/5 | 1.5 | 2.5 | 50 | 804201505 | |
| MR-42 | 200/5 | 2.5 | 5 | 50 | 804202005 | |
| MR-42 | 250/5 | 3.75 | 5 | 50 | 804202505 | |
| MR-42 | 300/5 | 3.75 | 5 | 50 | 804203005 | |
|
Note: Class/VA rating must be mentioned when ordering. There is no accessory for MR-42 |
||||||
| Ref. | Model |
Ratio （A） |
Burden（VA） |
Case Qty.(Pcs) |
Item Code | |
| Class:0.5 | Class:1.0 | |||||
| MR-45 | 250/5 | 3.75 | 5 | 50 | 804502505 | |
| MR-45 | 300/5 | 5 | 7.5 | 50 | 804503005 | |
| MR-45 | 400/5 | 5 | 7.5 | 50 | 804504005 | |
|
Note: Class/VA rating must be mentioned when ordering. There is no accessory for MR-45 |
||||||
| Ref. | Model |
Ratio （A） |
Burden（VA） |
Case Qty.(Pcs) |
Item Code | |
| Class:0.5 | Class:1.0 | |||||
| MR-60 | 300/5 | 3.75 | 5 | 54 | 806003005 | |
| MR-60 | 400/5 | 5 | 7.5 | 32 | 806004005 | |
| MR-60 | 500/5 | 5 | 10 | 40 | 806005005 | |
| MR-60 | 600/5 | 7.5 | 10 | 40 | 806006005 | |
| MR-60 | 800/5 | 7.5 | 10 | 54 | 806008005 | |
|
Note: Class/VA rating must be mentioned when ordering. There is no accessory for MR-60 |
||||||
| Ref. | Model |
Ratio （A） |
Burden （VA） |
Case Qty.(Pcs) |
Item Code | |
| Class:0.5 | Class:1.0 | |||||
| MR-85 | 600/5 | 5 | 10 | 30 | 808506005 | |
| MR-85 | 800/5 | 7.5 | 10 | 30 | 806508005 | |
| MR-85 | 1000/5 | 10 | 15 | 30 | 808510005 | |
| MR-85 | 1200/5 | 10 | 15 | 30 | 808512005 | |
| MR-85 | 1500/5 | 10 | 15 | 30 | 808515005 | |
| MR-85 | 1600/5 | 10 | 15 | 30 | 808516005 | |
|
Note: Class/VA rating must be mentioned when ordering. There is no accessory for MR-85 |
||||||
| Ref. | Model |
Ratio （A） |
Burden （VA） |
Case Qty.(Pcs) |
Item Code | |
| Class:0.5 | Class:1.0 | |||||
| MR-125 | 2000/5 | 15 | 20 | 10 | 812520005 | |
| MR-125 | 2500/5 | 15 | 20 | 10 | 812525005 | |
| MR-125 | 3000/5 | 15 | 20 | 10 | 812530005 | |
| MR-125 | 4000/5 | 20 | 30 | 10 | 812540005 | |
| MR-125 | 5000/5 | 20 | 30 | 10 | 812550005 | |
|
Note: Class/VA rating must be mentioned when ordering. There is no accessory for MR-125 |
||||||
