PVC Coated Stainless Steel Band Clamps
Standard and Characteristic
Stainless steel band clamps (clip band, satisfaction clip) is mainly used not only for attaching cable, grounding conductors etc, but also for electrification railway, poe of telecommunication, trafficlights and singpole, etc.
The detail is as following:
1. Stainless steel band clamps is consisted of belt, clamp, ratch wheel and so on. The clamp is made of high quality 1mm thickness stainless steel. The belt is also made of stainless steel whose width is 14mm and thickness is 0.2mm. After the two edges of the belt are hemmed, the width of the belt is 10mm. The belt has strong intension and pull. The two edges of the belt are smooth.
2. Stainless steel band clamps are convenient to use. The clamp is capable of easily attaching, detaching or fastening the belt, and it can not be liable to loosen inadvertently.
3.The length of stainless steel band clamps is in accordance to customer's requirement. At present there are 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500, 2000mm specifications and so on.

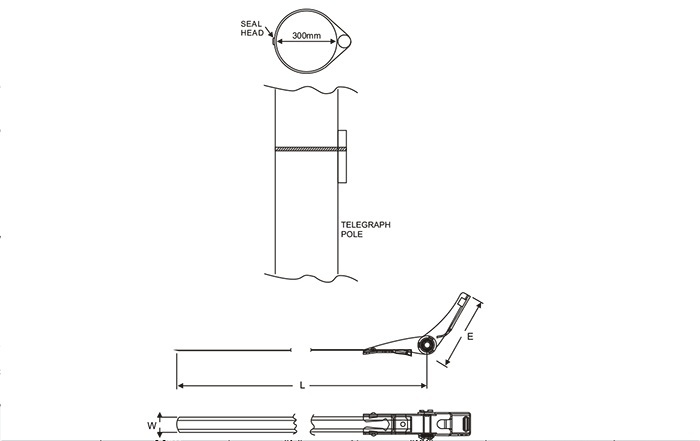

Specifications
Item No. | Max Bundle Dia |
Length Approx |
Width Approx |
Head Approx |
||||
inch | mm | inch | mm | inch | mm | inch | mm | |
HT-1100 | 11.8 | 330 | 43.3 | 1100 | .394 | 10.0 | 1.900 | 48.0 |
HT-1315 | 15.0 | 380 | 51.7 | 1315 | .394 | 10.0 | 1.900 | 48.0 |
