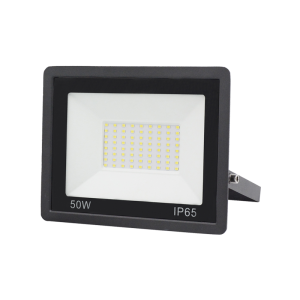

LED Flood light (Non-isolated solution)

An LED floodlight is a type of artificial lighting fixture that is designed to illuminate a large area, typically outdoors. "Non-isolated solution" refers to the electrical design of the LED driver circuitry. Isolation in this context means that there is a barrier in the circuitry to prevent direct electrical contact between certain components.

In a non-isolated LED driver circuit, there is no electrical barrier between the input and output sides of the circuit. On the other hand, an isolated LED driver includes a component called an isolator, usually a transformer, that separates the input and output sides.

Item No.	Voltage	Watts	Luminous Flux	Beam Angle	P.F.	CCT	CRI	Lifetime	Dimension	Dimmable	Standard
	(V)	(W)	(lm)	(°)		(K)		(hrs)	(mm)
UFL/FD/0/1/0	100-265V	10W	900lm	120°	0.5	6500K	≥80	25000	100*80*20	no	non-CE
UFL/FD/0/1/0	100-265V	20W	1800lm	120°	0.5	6500K	≥80	25000	120*93*22	no	non-CE
UFL/FD/0/1/0	100-265V	30W	2700lm	120°	0.5	6500K	≥80	25000	160*120*28	no	non-CE
UFL/FD/0/1/0	100-265V	50W	4500lm	120°	0.9	6500K	≥80	25000	209×160×30	no	non-CE
UFL/FD/0/1/0	100-265V	100W	9000lm	120°	0.9	6500K	≥80	25000	271×220×36	no	non-CE
UFL/FD/0/1/0	100-265V	150W	13500lm	120°	0.9	6500K	≥80	25000	320×280×36	no	non-CE
UFL/FD/0/1/0	100-265V	200W	18000lm	120°	0.9	6500K	≥80	25000	380×280×40	no	non-CE
