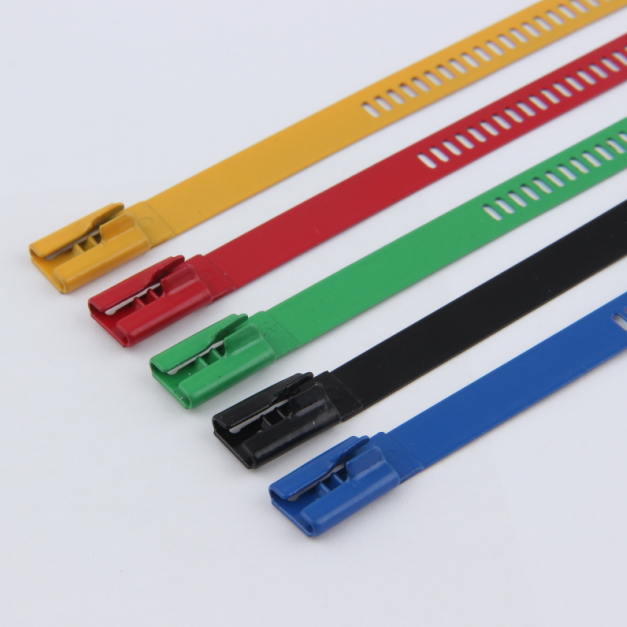

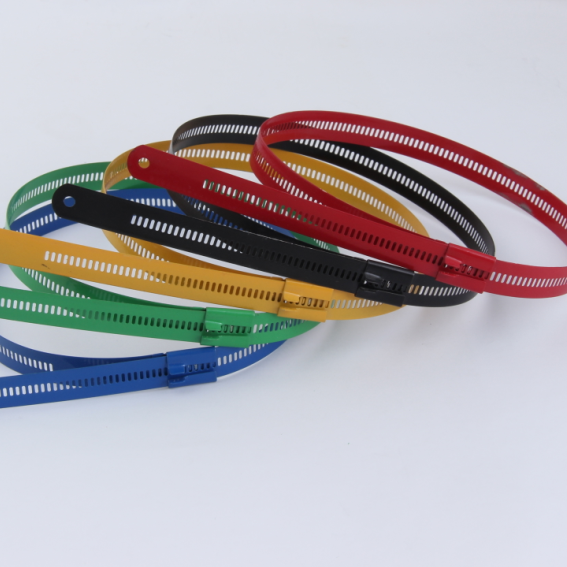

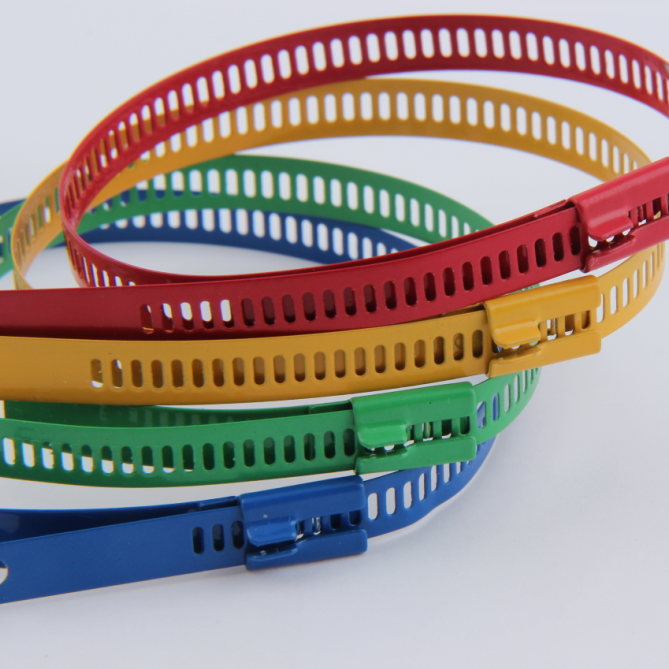

Ladder Type PVC Coated Stainless Steel Tie
Specifications
ITEM NO. |
Length |
Width |
Max. Bundle Dia. |
Min. Loop Tensile |
||||
inch | mm | inch | mm | inch | mm | lbs | kg | |
LSS-7×150 | 5.9 | 150 | .28 | 7 | .86 | 22 | 250 | 113.4 |
LSS-7×195 | 8 | 195 |
.28 |
7 |
1.7 | 45 | 250 | 113.4 |
LSS-7×255 | 10 | 255 |
.28 |
7 |
2.5 | 64 |
250 |
113.4 |
LSS-7×335 |
13 | 335 |
.28 |
7 |
3.5 | 89 |
250 |
113.4 |
LSS-7×490 |
19 | 490 |
.28 |
7 |
5.4 | 139 |
250 |
113.4 |
LSS-7×635 |
25 | 635 |
.28 |
7 |
7.2 | 185 |
250 |
113.4 |
LSS-12×150 |
5.9 | 150 |
.472 |
12 | .86 | 22 |
250 |
113.4 |
LSS-12×195 |
8 | 195 |
.472 |
12 | 1.7 | 45 |
250 |
113.4 |
LSS-12×255 |
10 | 255 |
.472 |
12 | 2.5 | 64 |
250 |
113.4 |
LSS-12×335 |
13 | 335 |
.472 |
12 | 3.5 | 89 |
250 |
113.4 |
LSS-12×490 |
19 | 490 |
.472 |
12 | 5.4 | 139 |
250 |
113.4 |
LSS-12×635 |
25 | 635 |
.472 |
12 | 7.2 | 185 |
250 |
113.4 |
