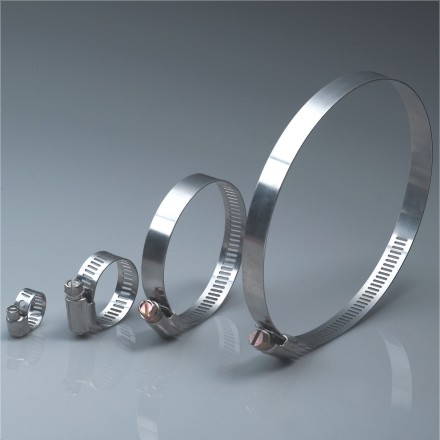

ZD Hose Clamp
Specifications
Model No. |
A | B | D | Strip Width | Use Range | Pressure Resistance Strength(Mpa/cm²) | Anti torpue valte(N.m) |
ZHC-9×12 | 20 | 10 | 12 | 9mm | 8-12mm | 1.4 | 25-5 |
ZHC-9×16 | 20 | 10 | 16 | 9mm | 10-16mm | 1.4 | 25-5 |
ZHC-9×20 |
20 | 10 | 20 |
9mm |
12-20mm | 1.4 | 25-5 |
ZHC-9×22 |
20 | 10 | 22 |
9mm |
12-22mm | 1.4 | 25-5 |
ZHC-9×25 |
20 | 10 | 25 |
9mm |
16-25mm | 1.4 | 25-6 |
ZHC-9×27 |
20 | 10 | 27 |
9mm |
16-27mm | 1.4 | 25-6 |
ZHC-9×32 |
25 | 10 | 32 |
9mm |
20-32mm | 0.7 | 25-6 |
ZHC-9×40 |
25 | 10 | 40 |
9mm |
25-40mm | 0.7 | 35-7 |
ZHC-9×45 |
25 | 10 | 45 |
9mm |
30-45mm | 0.7 | 35-7 |
ZHC-9×50 |
25 | 10 | 50 |
9mm |
32-50mm | 0.7 | 35-7 |
ZHC-9×60 |
25 | 10 | 60 |
9mm |
40-60mm | 0.7 | 35-7 |
ZHC-9×70 |
25 | 10 | 70 |
9mm |
50-70mm | 0.7 | 35-7 |
ZHC-9×80 |
25 | 10 | 80 |
9mm |
60-80mm | 0.3 | 5-10 |
ZHC-9×90 |
25 | 10 | 90 |
9mm |
70-90mm | 0.3 | 5-10 |
ZHC-9×100 |
25 | 10 | 100 |
9mm |
80-100mm | 0.3 | 5-10 |
ZHC-9×110 |
25 | 10 | 110 |
9mm |
90-110mm | 0.3 | 5-10 |
ZHC-9×120 |
25 | 10 | 120 |
9mm |
100-120mm | 0.3 | 5-10 |
ZHC-9×130 |
25 | 10 | 130 |
9mm |
110-130mm | 0.3 | 5-10 |
ZHC-9×140 |
25 | 10 | 140 |
9mm |
120-140mm | 0.3 | 5-10 |
ZHC-9×150 |
25 | 10 | 150 |
9mm |
130-150mm | 0.3 | 5-10 |
ZHC-9×160 |
25 | 10 | 160 |
9mm |
140-160mm | 0.3 | 5-10 |
ZHC-12×25 |
20 | 10 | 25 | 12mm | 16-25mm | 1.4 | 25-6 |
ZHC-12×27 |
20 | 10 | 27 |
12mm |
16-27mm | 1.4 | 25-6 |
ZHC-12×32 |
25 | 10 | 32 |
12mm |
20-32mm | 0.7 | 25-6 |
ZHC-12×40 |
25 | 10 | 40 |
12mm |
25-40mm | 0.7 | 35-7 |
ZHC-12×45 |
25 | 10 | 45 |
12mm |
30-45mm | 0.7 | 35-7 |
ZHC-12×50 |
25 | 10 | 50 |
12mm |
32-50mm | 0.7 | 35-7 |
ZHC-12×60 |
25 | 10 | 60 |
12mm |
40-60mm | 0.7 | 35-7 |
ZHC-12×70 |
25 | 10 | 70 |
12mm |
50-75mm | 0.7 | 35-7 |
ZHC-12×80 |
25 | 10 | 80 |
12mm |
60-80mm | 0.3 | 5-10 |
ZHC-12×90 |
25 | 10 | 90 |
12mm |
70-90mm | 0.3 | 5-10 |
ZHC-12×100 |
25 | 10 | 100 |
12mm |
80-100mm | 0.3 | 5-10 |
ZHC-12×110 |
25 | 10 | 110 |
12mm |
90-110mm | 0.3 | 5-10 |
ZHC-12×120 |
25 | 10 | 120 |
12mm |
100-120mm | 0.3 | 5-10 |
ZHC-12×130 |
25 | 10 | 130 |
12mm |
110-130mm | 0.3 | 5-10 |
ZHC-12×140 |
25 | 10 | 140 |
12mm |
120-140mm | 0.3 | 5-10 |
ZHC-12×150 |
25 | 10 | 150 |
12mm |
130-150mm | 0.3 | 5-10 |
ZHC-12×160 |
25 | 10 | 160 |
12mm |
140-160mm | 0.3 | 5-10 |
ZHC-13×20 |
20 | 10 | 20 | 13mm | 12-20mm | 1.4 | 12-20 |
ZHC-13×22 |
20 |
10 |
22 |
13mm |
12-22mm | 1.4 | 12-22 |
ZHC-13×25 |
20 |
10 |
25 | 13mm | 16-25mm | 1.4 | 16-25 |
ZHC-13×27 |
20 |
10 |
27 |
13mm |
16-27mm | 1.4 | 16-27 |
ZHC-13×32 |
25 |
10 |
32 |
13mm |
20-32mm | 0.7 | 20-32 |
ZHC-13×40 |
25 |
10 |
40 |
13mm |
25-40mm | 0.7 | 25-40 |
ZHC-13×45 |
25 |
10 |
45 |
13mm |
30-45mm |
0.7 |
30-45 |
ZHC-13×50 |
25 |
10 |
50 |
13mm |
32-50mm |
0.7 |
32-50 |
ZHC-13×60 |
25 |
10 |
60 |
13mm |
40-60mm |
0.7 |
40-60 |
ZHC-13×70 |
25 |
10 |
70 |
13mm |
50-70mm |
0.7 |
50-70 |
ZHC-13×80 |
25 |
10 |
80 |
13mm |
60-80mm | 0.3 | 60-80 |
ZHC-13×90 |
25 |
10 |
90 |
13mm |
70-90mm |
0.3 |
70-90 |
ZHC-13×100 |
25 |
10 |
100 |
13mm |
80-100mm |
0.3 |
80-100 |
ZHC-13×110 |
25 |
10 |
110 |
13mm |
90-110mm |
0.3 |
90-110 |
ZHC-13×120 |
25 |
10 |
120 |
13mm |
100-120mm |
0.3 |
100-120 |
ZHC-13×130 |
25 |
10 |
130 |
13mm |
110-130mm |
0.3 |
110-130 |
ZHC-13×140 |
25 |
10 |
140 |
13mm |
120-140mm |
0.3 |
120-140 |
ZHC-13×150 |
25 |
10 |
150 |
13mm |
130-150mm |
0.3 |
130-150 |
ZHC-13×160 |
25 |
10 |
160 |
13mm |
140-160mm |
0.3 |
140-160 |
