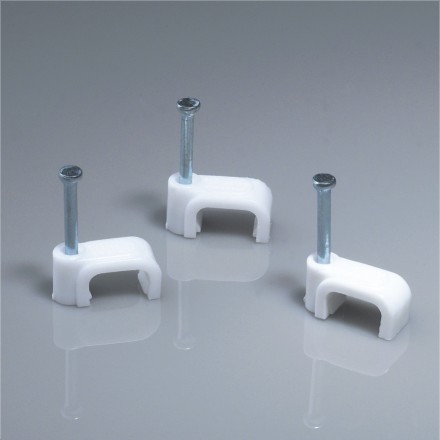

Flat Cable Clips
- Material: PP, Steel Nail.
- How to use: Put the cable under the clip and hammer the nail into the wall to secure the cable.
- Application: Securing of cables for general indoor wiring.

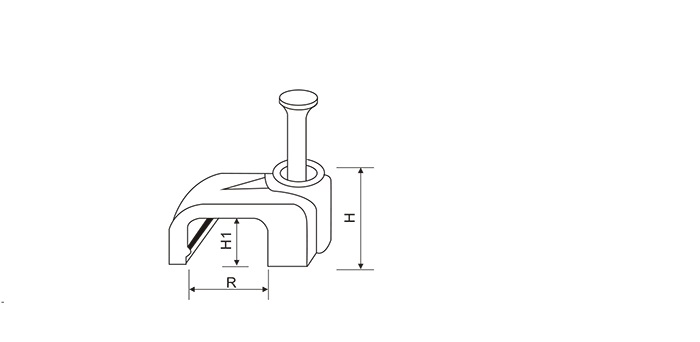

Specifications
| ITEM NO. | H (MM) |
internal size |
Nail (mm) | |
| H1(mm) | R(mm) | |||
| 4mm | 6.0 | 3.8 | 4 | 1.7×15 |
| 5mm | 6.0 |
3.8 |
5 |
1.7×15 |
| 6mm | 6.5 | 4.1 | 6 |
1.7×15 |
| 7mm | 7.0 | 4.7 | 7 |
1.9×18 |
| 8mm | 7.5 | 5.0 | 8 | 2.05×20 |
| 9mm | 8.2 | 5.4 | 9 | 2.05×23 |
| 10mm | 8.6 | 5.7 | 10 | 2.3×23 |
| 12mm | 9.0 | 6.1 | 12 |
2.3×23 |
| 14mm | 11.2 | 6.5 | 14 | 2.4×30 |
