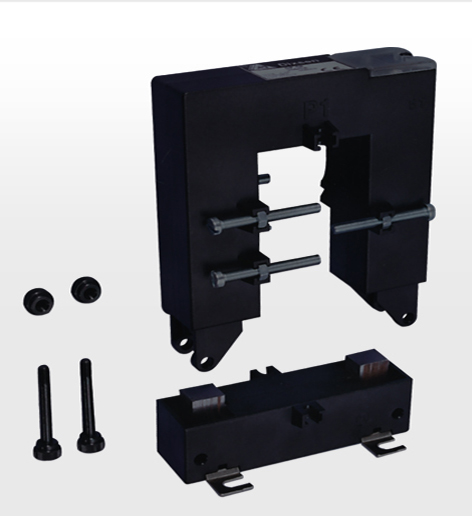

DBP Series Current Transformer
Specifications
|
Ref
|
Model
|
Ratio(A) |
Burden（A）
|
Case Qty.(Pcs) |
Item Code
|
|
|
Class:0.5
|
Class：1.0
|
|||||
|
|
DBP-23
|
200/5
|
-
|
1.5
|
20
|
402302005
|
|
DBP-23
|
250/5
|
-
|
2.5
|
20
|
402302505
|
|
|
DBP-23
|
300/5
|
1.5
|
2.5
|
20
|
402303005
|
|
|
DBP-23
|
400/5
|
2.5
|
2.75
|
20
|
402304005
|
|
|
Note: Class/VA rating must be mentioned when ordering.
|
||||||
| Ref | Model |
Ratio(A) |
Burden（VA） |
Case Qty.(Pcs) |
Item Code | |
| Class:0.5 | Class：1.0 | |||||
|
DBP-58
|
250/5
|
-
|
1.5
|
10
|
405802505
|
|
|
DBP-58
|
300/5
|
-
|
2.5
|
10
|
405803005
|
|
|
DBP-58
|
400/5
|
1.5
|
2.5
|
10
|
405804005
|
|
|
DBP-58
|
500/5
|
2.5
|
5
|
10
|
405805005
|
|
|
DBP-58
|
600/5
|
2.5
|
5
|
10
|
405806005
|
|
|
DBP-58
|
750/5
|
2.5
|
5
|
10
|
405807505
|
|
|
DBP-58
|
800/5
|
3.75
|
5
|
10
|
405808005
|
|
|
DBP-58
|
1000/5
|
5
|
10
|
10
|
405810005
|
|
| Note: Class/VA rating must be mentioned when ordering. | ||||||
| Ref | Model |
Ratio(A) |
Burden（VA） |
Case Qty.(Pcs) |
Item Code | |
| Class:0.5 | Class：1.0 | |||||
|
DBP-88
|
250/5
|
-
|
1.5
|
10
|
408802505
|
|
|
DBP-88
|
300/5
|
-
|
1.5
|
10
|
408803005
|
|
|
DBP-88
|
400/5
|
-
|
2.5
|
10
|
408804005
|
|
|
DBP-88
|
500/5
|
1.5
|
2.5
|
10
|
408805005
|
|
|
DBP-88
|
600/5
|
2.5
|
5
|
10
|
408806005
|
|
|
DBP-88
|
750/5
|
2.5
|
5
|
10
|
408807505
|
|
|
DBP-88
|
800/5
|
3.75
|
5
|
10
|
408808005
|
|
|
DBP-88
|
1000/5
|
5
|
7.5
|
10
|
408810005
|
|
| Note: Class/VA rating must be mentioned when ordering. | ||||||
| Ref | Model |
Ratio(A) |
Burden（VA） |
Case Qty.(Pcs) |
Item Code | |
| Class:0.5 | Class：1.0 | |||||
|
DBP-812
|
500/5
|
-
|
2.5
|
10
|
481205005
|
|
|
DBP-812
|
600/5
|
-
|
2.5
|
10
|
481206005
|
|
|
DBP-812
|
750/5
|
2.5
|
5
|
10
|
481207505
|
|
|
DBP-812
|
800/5
|
2.5
|
5
|
10
|
481208005
|
|
|
DBP-812
|
1000/5
|
3.75
|
7.5
|
10
|
481210005
|
|
|
DBP-812
|
1200/5
|
5
|
10
|
10
|
481212005
|
|
|
DBP-812
|
1250/5
|
5
|
10
|
10
|
481212505
|
|
|
DBP-812
|
1500/5
|
7.5
|
10
|
10
|
481215005
|
|
| Note: Class/VA rating must be mentioned when ordering. | ||||||
| Ref | Model |
Ratio(A) |
Burden（VA） |
Case Qty.(Pcs) |
Item Code | |
| Class:0.5 | Class：1.0 | |||||
|
DBP-816
|
1000/5
|
5
|
10
|
5
|
481610005
|
|
|
DBP-816
|
1500/5
|
7.5
|
10
|
5
|
481615005
|
|
|
DBP-816
|
2000/5
|
10
|
15
|
5
|
481620005
|
|
|
DBP-816
|
2500/5
|
15
|
20
|
5
|
481625005
|
|
|
DBP-816
|
3000/5
|
20
|
25
|
5
|
481630005
|
|
|
DBP-816
|
4000/5
|
20
|
25
|
5
|
481640005
|
|
|
DBP-816
|
5000/5
|
20
|
25
|
5
|
481650005
|
|
| Note: Class/VA rating must be mentioned when ordering. | ||||||
