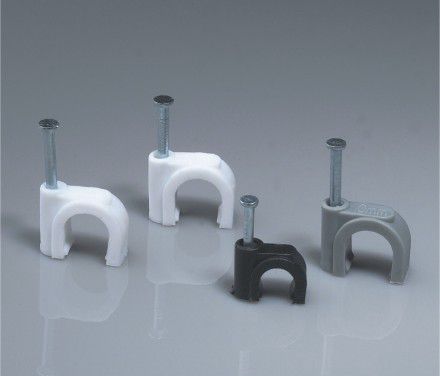

Circle Cable Clips
- Material: PP, Steel Nail.
- How to use: Put the cable under the clip and hammer the nail into the wall to secure the cable.
- Application: Securing of cables for general indoor wiring.
Specifications

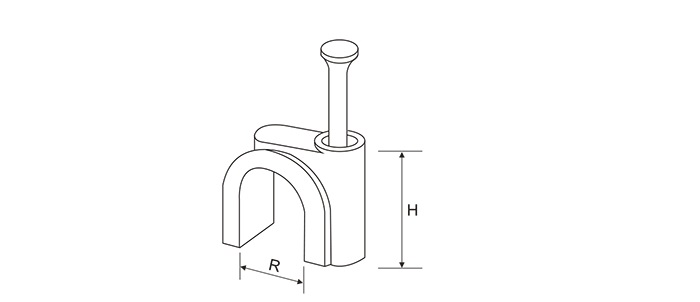

| ITEM NO. | H(MM) | Circle Path R(MM) | NaiMM |
| 4mm | 5.3 | 4 | 1.7×15 |
| 5mm | 6.5 | 5 |
1.7×15 |
| 6mm | 8.1 | 6 |
1.7×17 |
| 7mm | 8.7 | 7 | 1.8×19 |
| 8mm | 9.6 | 8 | 1.9×21 |
| 9mm | 10.7 | 9 | 2.0×22 |
| 10mm | 11.7 | 10 | 2.05×25 |
| 12mm | 12.8 | 12 | 2.05×27 |
| 14mm | 14.9 | 14 | 2.4×32 |
| 16mm | 16.9 | 16 | 2.5×35 |
| 18mm | 20.8 | 18 | 2.5×37 |
| 20mm | 23.6 | 20 | 2.8×42 |
| 22mm | 25.0 | 22 | 2.8×48 |
| 25mm | 27.7 | 25 |
3.2×48 |
| 30mm | 33.1 | 30 |
3.2×53 |
| 35mm | 36.6 | 35 |
3.2×58 |
| 40mm | 45.2 | 40 |
3.4×60 |
