610 Indoor VT Series Current Transformer Manufacturer
Specifications
| Model | Voltage Ratio(V) | Rated Burden (VA) | Ultimate Burden (VA) | Insulated Level(kV) | |||||
| 0.2 | 0.5 | 1 | 0.2/0.2 | 0.2/0.5 | 0.5/0.5 | ||||

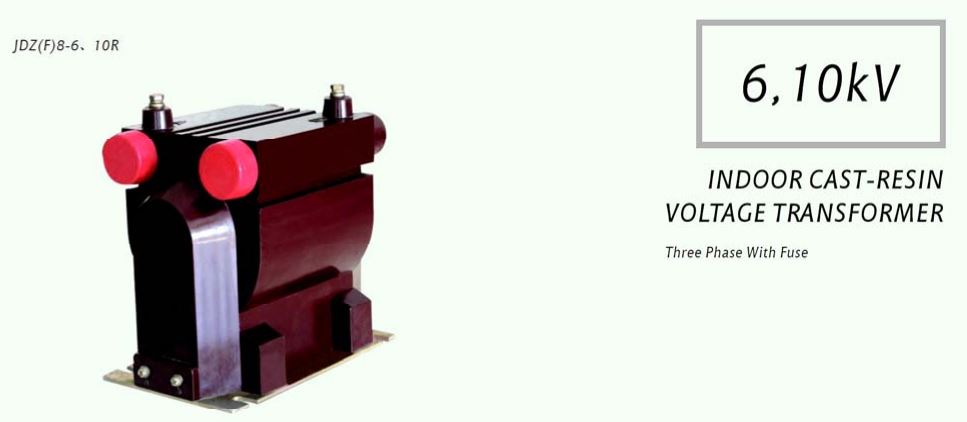

| JDZ8-10R | 6/0.1 | 20 | 60 | 120 |
|
|
|
400 | 7.2/32/60 |
| JDZF8-6R | 10/0.1 | 30 | 80 | 150 |
|
|
|
12/42/75 | |
| JDZF8-10R | 6/0.1/0.1 |
|
|
|
15/15 | 15/20 | 30/50 | 300 | 7.2/32/60 |
| JDZF8-10R | 10/0.1/0.1 |
|
|
|
20/20 | 20/40 | 40/40 | 1/42/75 | |
|
Model |
Voltage Ratio (kV) | Rated Burden(VA) | Ultimate Burden(VA) | Insulated Level(kV) | |||
| 0.2 | 0.5 | 1级 | 3P级 | ||||

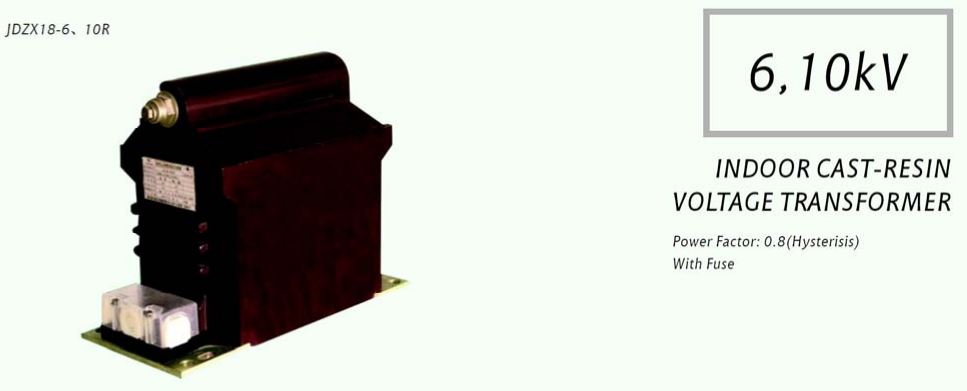

| JDZX18-6R | 6:√3/0.1:√3/0.1:3 | 20 | 40 | 60 | 50 | 400 | 7.2/20/60 |
| JDZX18-10R | 10:√3/0.1:√3/0.1:3 | 25 | 50 | 90 | 50 | 12/28/75 | |
| Model | Voltage Ratio(kV) | Rated Burden(VA) | Ultimate Burden (VA) |
Insulated Level(kV) |
Remark |
||||
| 0.2 |
0.5 |
1 |
0.2/0.2 0.2/0.5 |
0.5/0.5 |
|||||
| JSZV1-6R | 6000/100 | 20 | 50 | 80 |
|
|
800 | 7.2/32/60 |
Available for coming with 220V power supply(800VA) |
|
6000/100/100 |
|
|
|
20/20 | 40/40 | ||||
|

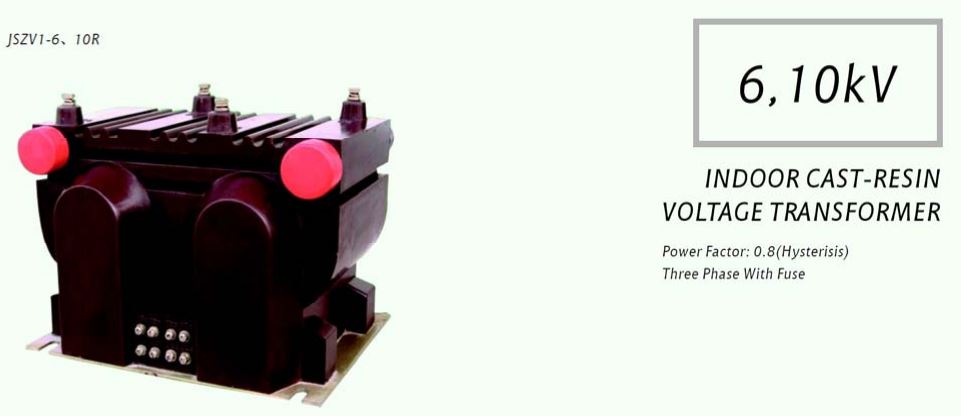

JSZV1-10R |
10000/100 | 30 | 80 | 150 |
|
|
800 | 12/42/75 | |
| 10000/100/100 |
|
|
|
20/20 | 40/40 | ||||
