3,6kv Indoor VT Series Current Transformer
Specifications
| Model No. | Voltage Ratio(V) | Burden(VA) | Ultimate Burden(VA) | Insulated Level(kA) | Remark | |||
| Class: 0.2 | Class: 0.5 | Class: 1 | Class: 6P | |||||

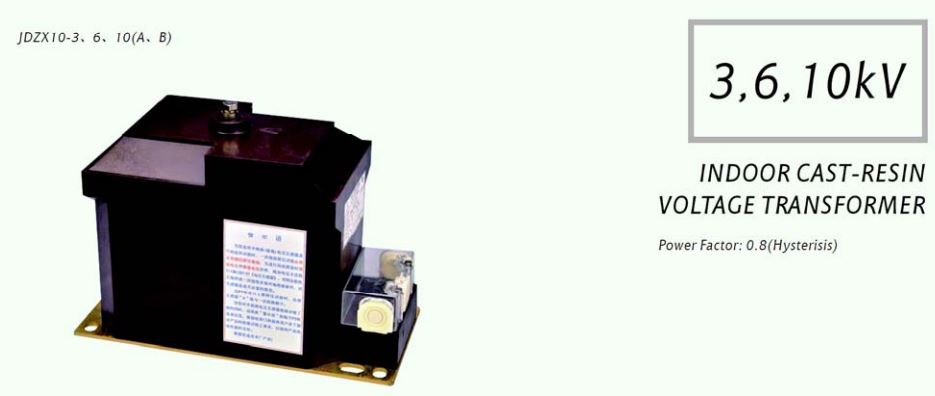

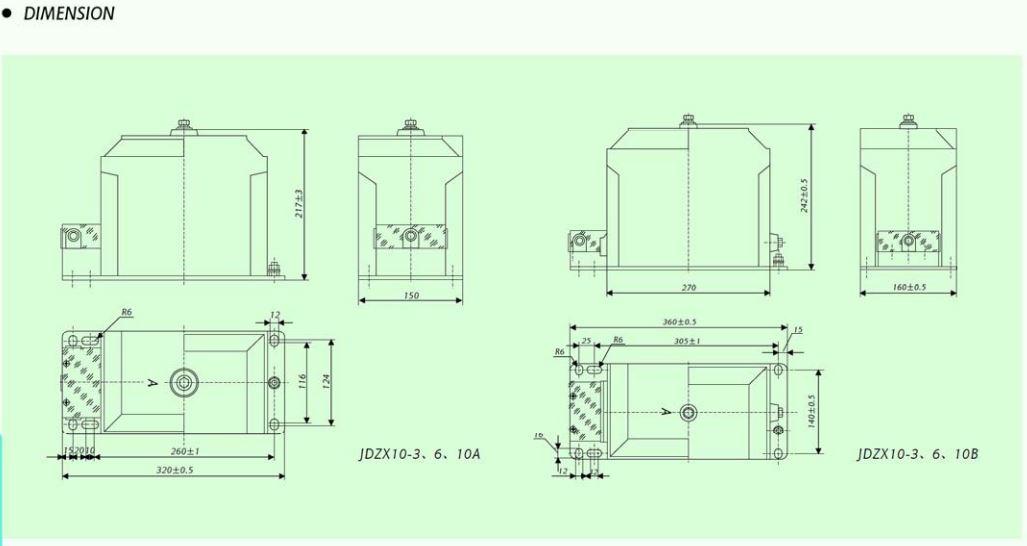

| JDZX10-3A | 3000/√3/100/√3/100/3 | 15 | 30 | 60 | 50 | 150 | 3.6/23/40 |
Same with RZL |
| JDZX10-6A |
6000/√3/100/√3/100/3 |
15 | 30 | 60 | 50 | 150 | 7.2/32/60 | |
|
JDZX10-10A |
10000/√3/100/√3/100/3 |
15 | 30 | 60 | 50 | 150 | 12/42/75 | |
|
JDZX10-3B |
3000/√3/100/√3/100/3 |
20 | 50 | 60 | 50 | 400 | 3.6/25/40 | |
|
JDZX10-6B |
6000/√3/100/√3/100/3 |
20 | 50 | 60 | 50 | 400 | 7.2/32/60 | |
|
JDZX10-10B |
10000/√3/100/√3/100/3 |
20 | 50 | 60 | 50 | 400 | 12/42/75 | |
Note: Special specification upon request. please contact our sales team about your solution.
|
Model No. |
Voltage Ratio (V) | Burden (VA) | Ultimate Burden (VA) | Insulated Level (kA) | Remark | |||
| Class:0.2 | Class: 0.5 | Class: 1 | Class: 6P | |||||
| JDZX10-3A |
3000/√3/100/√3/100/3 |
15 | 30 | 60 | 50 | 150 | 3.6/23/40 |
Same with RZL |
| JDZX10-6A |
6000/√3/100/√3/100/3 |
15 | 30 | 60 | 50 | 150 | 7.2/32/60 | |
| JDZX10-10A |
10000/√3/100/√3/100/3 |
15 | 30 | 60 | 50 | 150 | 12/42/75 | |
| JDZX10-3B |
3000/√3/100/√3/100/3 |
20 | 50 | 90 | 50 | 400 | 3.6/25/40 | |
| JDZX10-6B |
6000/√3/100/√3/100/3 |
20 | 50 | 90 | 50 | 400 | 7.2/32/60 | |
| JDZX10-10B |
10000/√3/100/√3/100/3 |
20 | 50 | 90 | 50 | 400 | 12/42/75 | |
Note: Special specification upon request. please contact our sales team about your solution.
| Model | Frequency (Hz) | Voltage Ratio(kV) | Accuracy Index | Rated Burden (VA) | Ultimate Burden(VA) | Insulated Level (kV) | Remark |

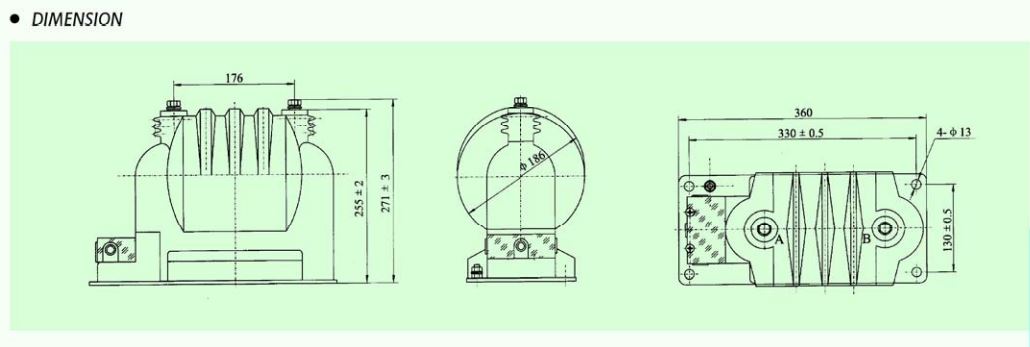

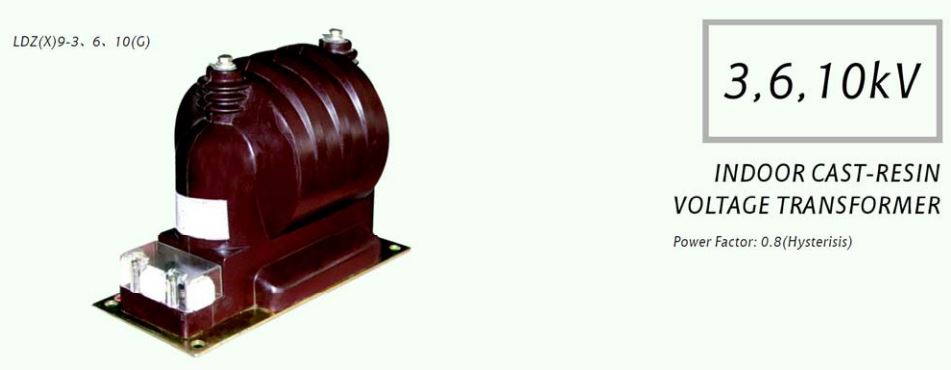

| JDZ9-3 | 50.60 | 3000/100 | 0.2 | 15 | 200 | 3.6/25/40 | Same with VKV |
| 0.5 | 30 | ||||||
| 1 | 50 | ||||||
| 3 | 100 | ||||||
| JDZ9-6 | 50.60 | 6000/100 | 0.2 | 20 | 400 | 7.2/32/60 | Same with VKV |
| 0.5 | 50 | ||||||
| 1 | 80 | ||||||
| 3 | 200 | ||||||
| JDZ9-10 | 50.60 | 10000/100 | 0.2 | 30 | 500 | 12/42/75 | Same with VKV |
| 0.5 | 80 | ||||||
| 1 | 200 | ||||||
| 3 | 240 | ||||||

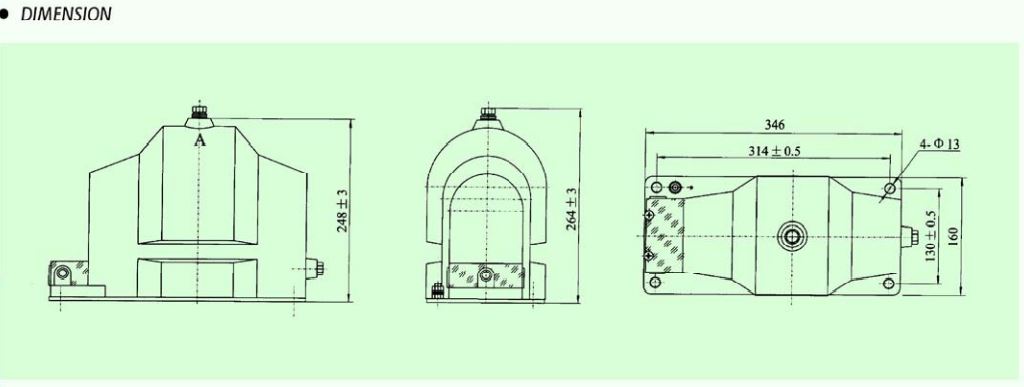

| JDZX9-3G | 50.60 | 3000/√3/100/√3/100/3 | 0.5/6P | 25/100 | 400 | 3.6/25/40 | |
| JDZX9-6G | 6000/√3/100/√3/100/3 | 7.2/32/60 | |||||
| JDZX9-10G | 10000/√3/100/√3/100/3 | 7.2/32/60 | |||||
| 10000/√3/100/√3/100/√3/100 | 0.2/0.5/6P | 20/25/50 |
|
| Model | Voltage Ratio (kV) | Accuracy Index | Rated Burden (VA) | Ultimate Burden (VA) | Insulated Level (kV) |

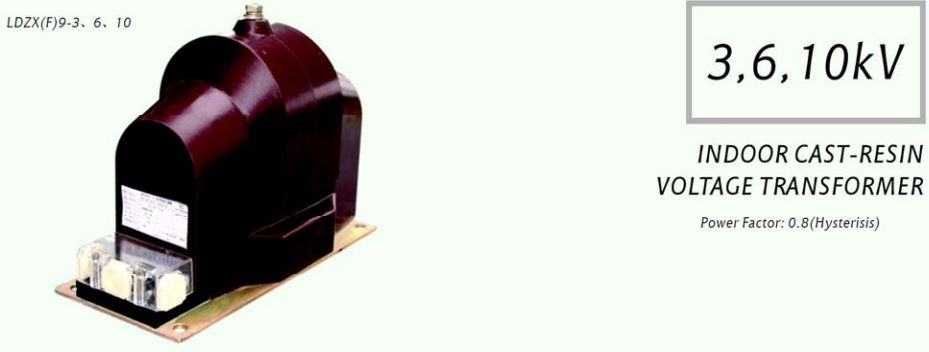

| JDZX9-3 |
3/√3/0.1/√3/0.1/3 |
0.2/6P 0.5/6P 1/6P |
15/50 30/50 50/50 |
400 |
3.6/10/40 |
| JDZX9-6 | 6/√3/0.1/√3/0.1/3 |
0.2/6P 0.5/6P 1/6P |
15/50 30/50 50/50 |
7.2/20/60 | |
|
JDZX9-10 |
10/√3/0.1/√3/0.1/3 |
0.2/6P 0.5/6P 1/6P |
20/100 50/100 80/100 |
12/28/75 | |
|
JDZX9-3 |
3/√3/0.1/√3/0.1/3 |
0.2/0.2/6P 0.2/0.5/6P 0.5/0.5/6P |
15/15/50 15/20/100 30/30/100 |
400 |
3.6/10/40 |
|
JDZX9-6 |
6/√3/0.1/√3/0.1/3 |
0.2/0.2/6P 0.2/0.5/6P 0.5/0.5/6P |
15/15/100 15/20/100 30/30/100 |
7.2/20/60 | |
|
JDZX9-10 |
10/√3/0.1/√3/0.1/√3/0.1/3 |
0.2/0.2/6P 0.2/0.5/6P 0.5/0.5/6P |
20/20/100 20/30/100 30/30/100 |
12/28/75 |
| Model | Frequency (Hz) | Voltage Ratio (kV) | Accuracy Index | Rated Burden (VA) | Ultimate Burden (VA) | Insulated Level (kV) | Remark |

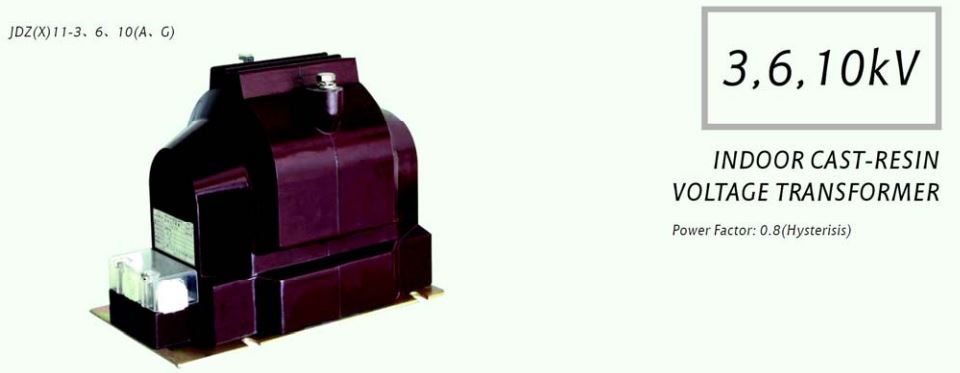

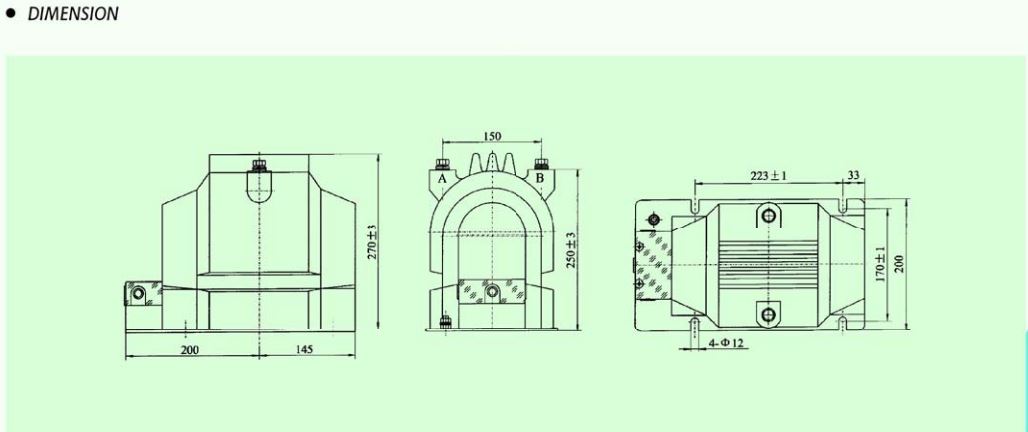

| JDZ11-3A | 50.60 | 3/0.1. 3/0.1/0.1 |
0.2 0.5 1 0.2/0.2 0.2/0.3 |
30 80 150 20/20 20/30 |
400
|
3.6/25/40 |
Same with UNZ10
|
| JDZ11-6A | 6/0.1. 6/0.1/0.1 | 7.2/32/60 | |||||
| JDZ11-10A | 10/0.1. 10/0.1/0.1 | 12/42/75 | |||||
| JDZ11-3G | 50.60 | 3/√3/0.1/√3/0.1/3 |
0.2/6P 0.5/6P 1/6P |
20/100 40/100 80/100 |
300
|
3.6/25/40 |
|
|
JDZ11-6G |
6/√3/0.1/√3/0.1/3 | 7.2/32/60 | |||||
|
JDZ11-10G |
10/√3/0.1/√3/0.1/3 |
12/42/75
|
|||||
| 10/√3/0.1/√3/0.1/√3/0.1/3 | 0.2/0.5/6P | 20/40/100 |
