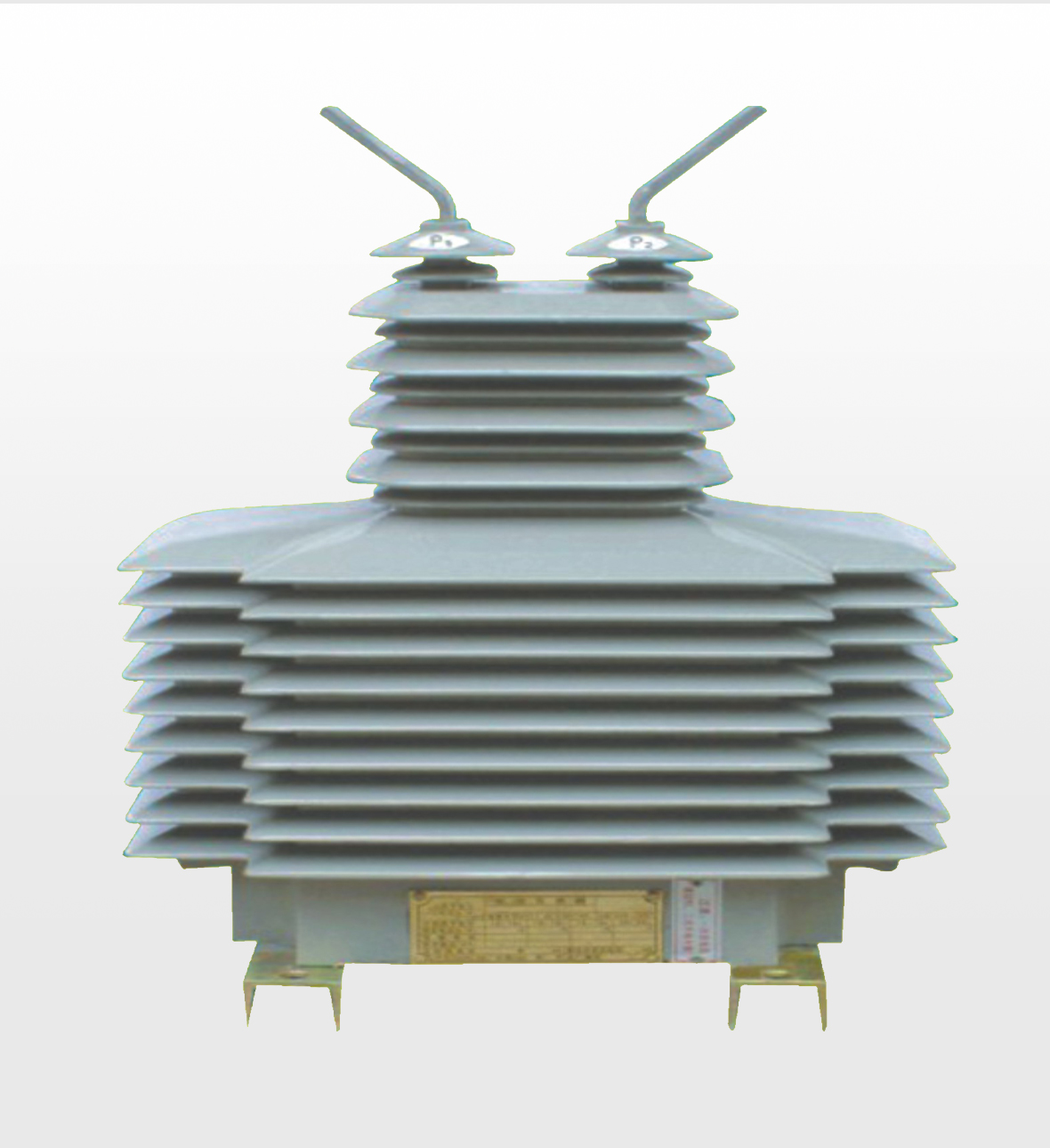

35kv Outdoor CT Series Current Transformer
Specifications
| Primary Current(A) | Accuracy Index | Burden(VA) | Short-time Thermal Current(kA/5) | Dynamic Current(kA) | |||
| 0.25 | 0.2 | 0.5 | 10P10 | ||||
| 30-100 |
0.2/0.2 0.2/0.5 0.5/0.5 0.2/10P10 0.5/10P10 0.2S/0.5/10P10 |
15 | 30 | 30 | 50 | 150/2 | 375/2 |
| 150 | 15 | 30 | 30 | 50 | 31.5/1 | 80 | |
| 200 | 15 | 30 | 30 | 50 | 31.5/2 | 80 | |
| 300-500 | 15 | 30 | 30 | 50 | 31.5/3 | 80 | |
| 600-800 | 15 | 30 | 40 | 50 | 31.5/4 | 80 | |
| 1000-2000 | 15 | 30 | 40 | 50 | 40/4 | 100 | |
Key Features
High Voltage Rating: Designed for 35kV applications, this current transformer can handle significant electrical stresses while maintaining accuracy.Durable Construction: Built to withstand harsh outdoor conditions, including extreme temperatures, moisture, and UV exposure.
Precision Measurement: Offers high accuracy in current measurement, essential for effective monitoring and control of electrical systems.
Insulation and Safety: Equipped with robust insulation to prevent electrical faults and ensure safety in high-voltage environments.
Compact Design: Space-efficient design allows for easy installation in confined outdoor spaces.
Benefits
Enhanced Reliability: Provides consistent and reliable current measurement, reducing the risk of electrical faults and improving system stability.Reduced Maintenance Costs: Durable materials and construction result in lower maintenance needs and extended service life.
Versatility: Suitable for various outdoor high-voltage applications, including power distribution and industrial systems.
Applications
Power Distribution Networks: Essential for monitoring and protecting high-voltage lines and equipment.Industrial Facilities: Used in factories and processing plants where accurate current measurement is critical.
Renewable Energy Systems: Applicable in solar and wind power installations to ensure efficient operation and protection.
