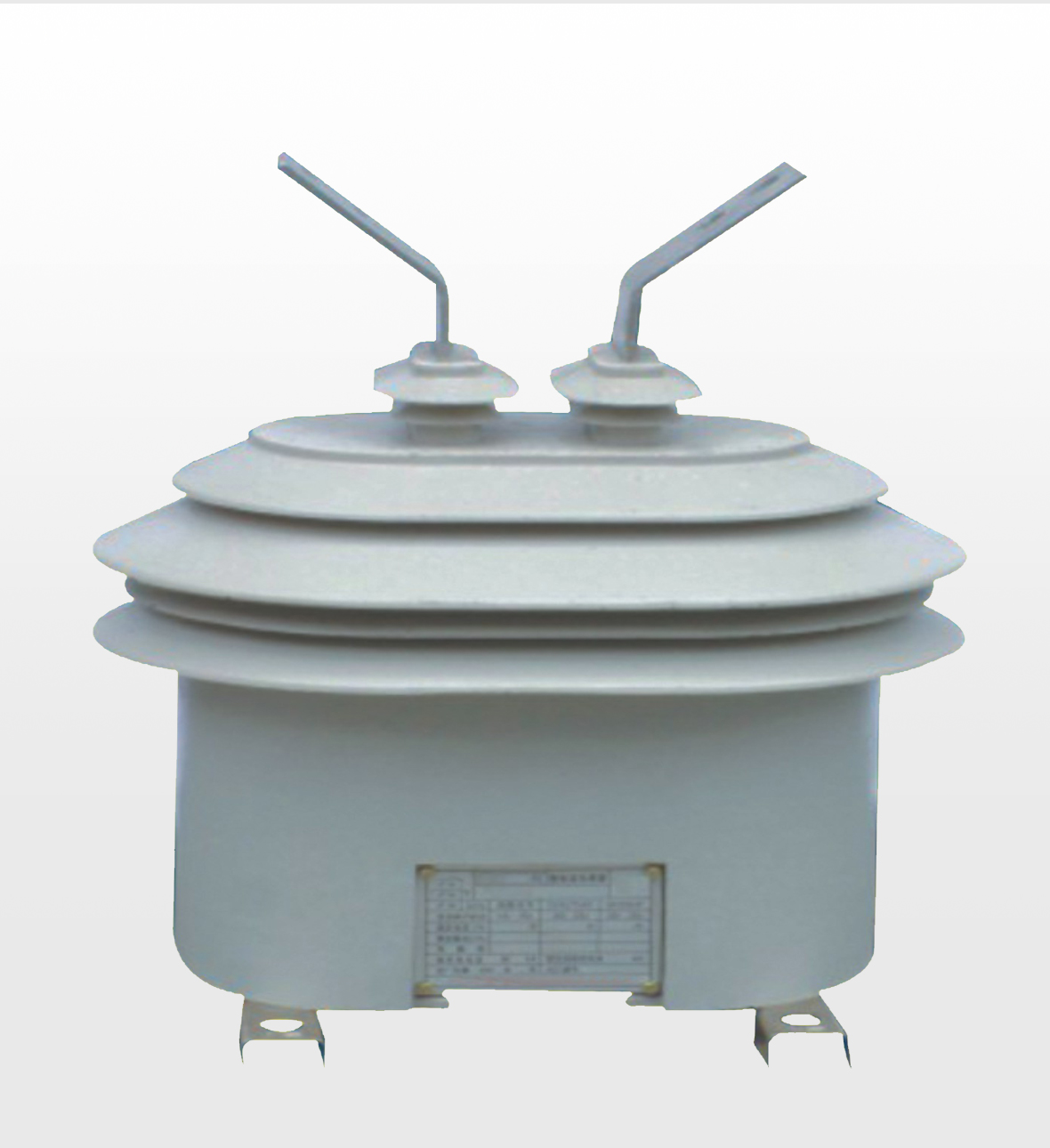

10kV Outdoor CT Series Current Transformer

The 10kV Outdoor CT Series Current Transformer is typically used in applications that require electrical measurement and monitoring. These transformers are designed for outdoor installation and can withstand various environmental conditions. They are commonly employed in power transmission and distribution systems, where they are used to convert high currents into manageable levels for measurement and protection purposes.

Specifically, they can be found in substations, power plants, and industrial facilities, where they are connected to electrical circuits to measure the current flowing through them. This information is then used to monitor the system's performance, detect faults, and ensure the safe and efficient operation of the power grid.

Primary Current(A)	Accuracy Index	Burden(VA)	Short-time Thermal Current(kA/S)	Dynamic Current(kA)
20-40;40	0.2S/0.5 0.5S/0.5 0.5/0.5 0.2/0.5 0.2/10P10 0.5/10P10 10P10/10P10 10P15/10P15 10P20/10P20 0.2S/0.5/10P10	10/10 10/10 10/10 10/10 10/15 10/15 15/15 10/10 10/10 10/15/15	6.3	15
30-50;50			7.5	18.75
40-75;75			15	37.5
50-100;100			18	45
75-150;150			25	55
100-200;200			50	110
150-300;300			60	130
200-400;400
300-600;600
400 800;800
500-1000;1000			80	160
1200-1500;1500

Primary Current(A)	Accuracy Index	Burden(VA)	Short-time Thermal Current(kA/S)	Dynamic Current(kA)
10-15-20	0.2/0.2 0.2/0.5 0.5/0.5 0.2/10P10 0.5/10P10 0.2S/0.5/10P10	10/10 10/10 10/10 10/15 10/15 10/10/15	2.7	4.5
15-20-30			4.2	6.6
20-30-40			6	9
30-40-50			9	11.5
40-50-75			11.,3	16.5
50-75-100			16.8	22
75-100-150			24	33
100-150-00			33.6	45
150-200-300			45	63
200-300-400			45	80
300-400-500			45	100
500-600-800			80	130
600-800-1000			80	130
