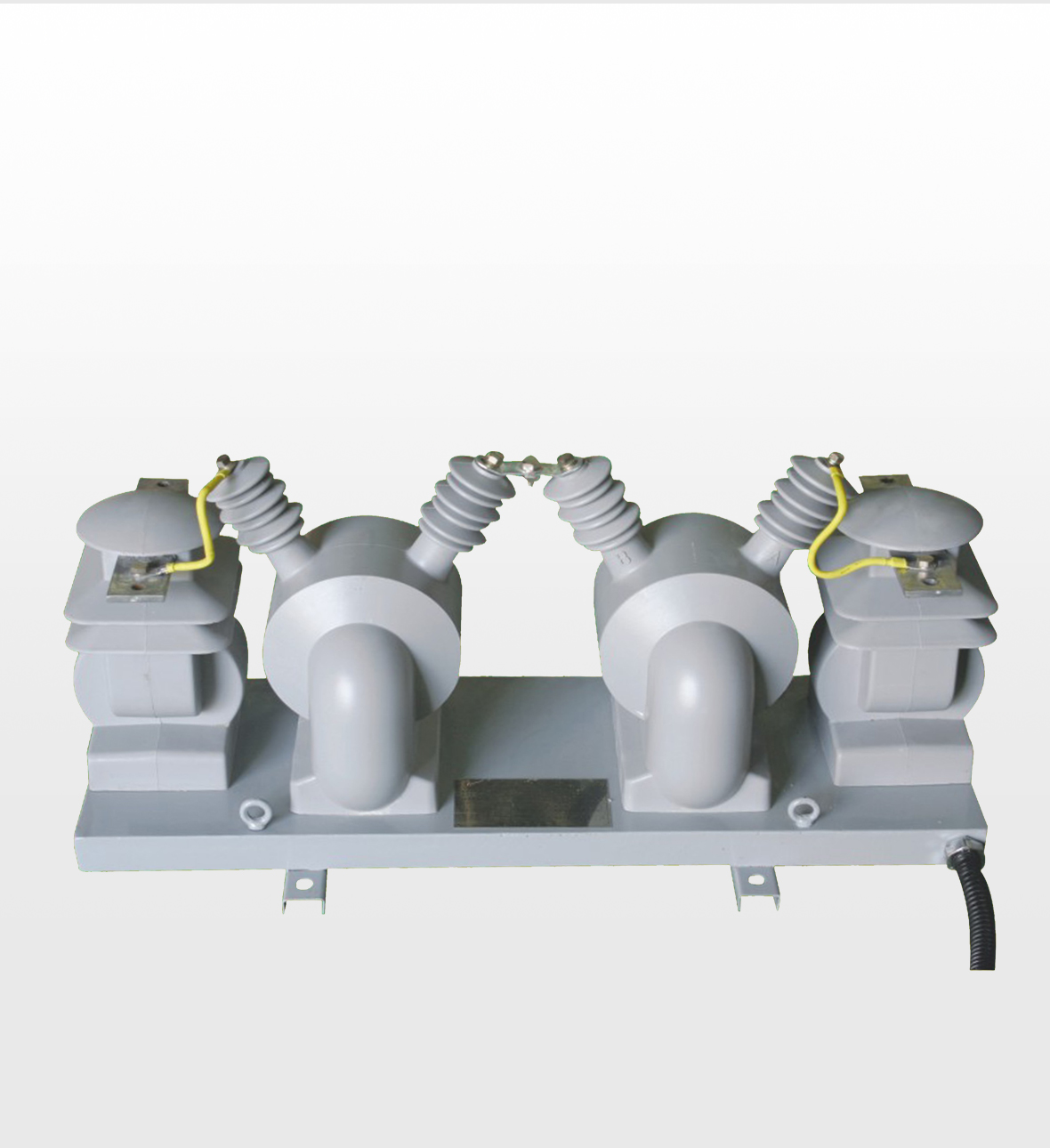

10kv Outdoor CT-VT Combination Series Current Transformer
Specifications
Primary Current(A) |
Short-time Thermal Current(kA/S) |
Dynamic Current | Burden(VA) | |
Class: 0.2S. 0.2 | Class: 0.5 | |||
5-10 | 1.0 | 2.5 | 10 | 15 |
10-20 | 1.5 | 3.75 | 10 | 15 |
15-30 | 2.4 | 6.0 | 10 | 15 |
20-40 | 3.0 | 7.5 | 10 | 15 |
30-60 | 4.5 | 11 | 10 | 15 |
40-75 | 8.0 | 20 | 10 | 15 |
50-100 | 9.0 | 22.5 | 10 | 15 |
75-150 | 12 | 30 | 10 | 15 |
100-200 | 16 | 40 | 10 | 15 |
150-300 | 24 | 60 | 10 | 15 |
200-400 | 32 | 80 | 10 | 15 |
300-600 | 60 | 100 | 10 | 15 |
400-800 | 80 | 100 | 10 | 15 |
500-1000 | 80 | 100 | 10 |
15 |
